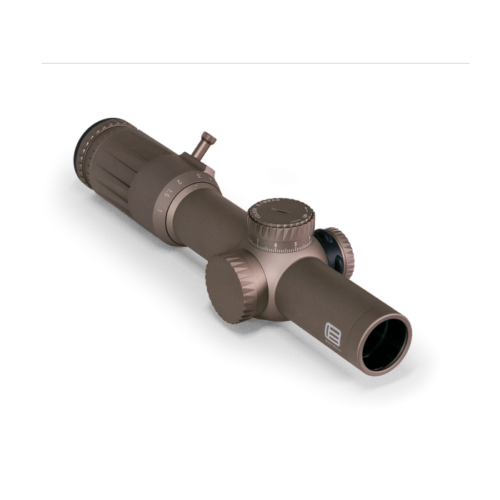

EOTECH Vudu® 1-10X28 FFP Scope 34mm SR5 Illuminated MIL Reticle FDE VDU1-10FFSR5TAN

EOTECH Vudu® 1-10X28 FFP Scope VDU1-10FFSR5TAN 1-10X28 First Focal Plane, Rifle Scope, 34mm Tube, SR5 Illuminated MIL Reticle, Tan

EOTECH Vudu® Characteristics

Technical Specifications

Overview

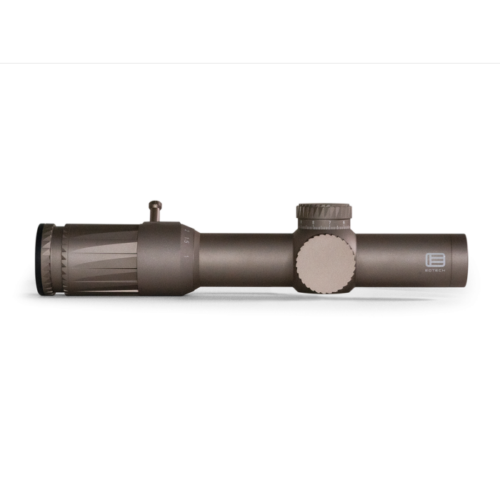

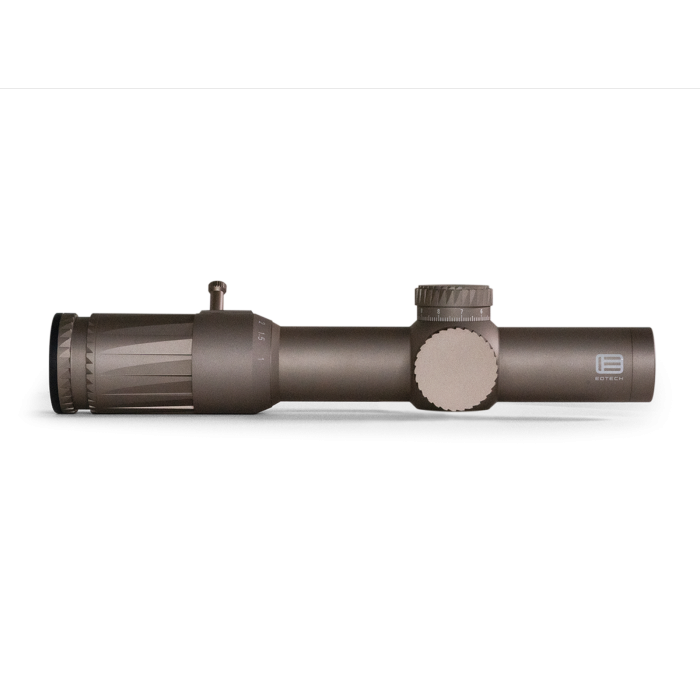

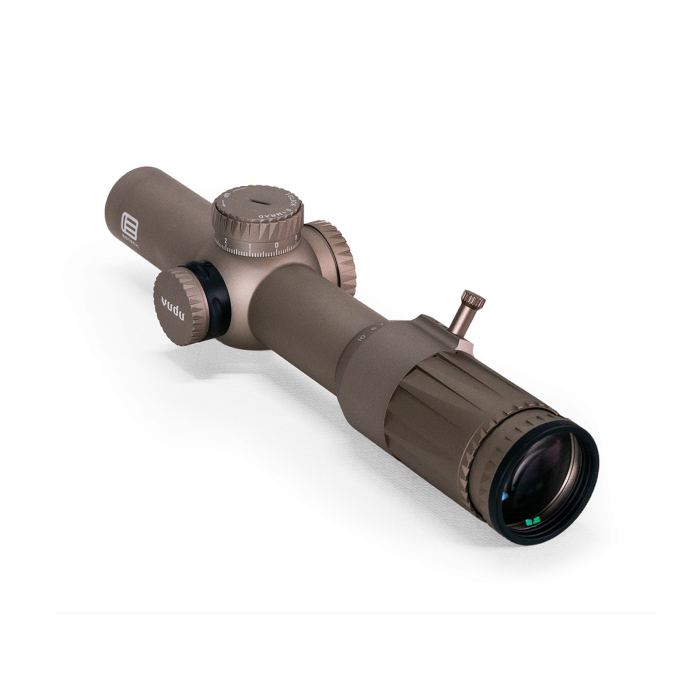

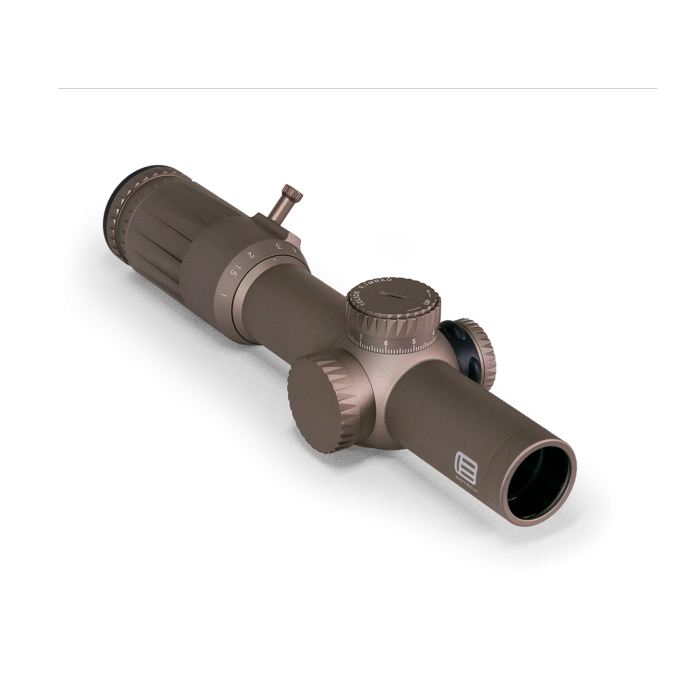

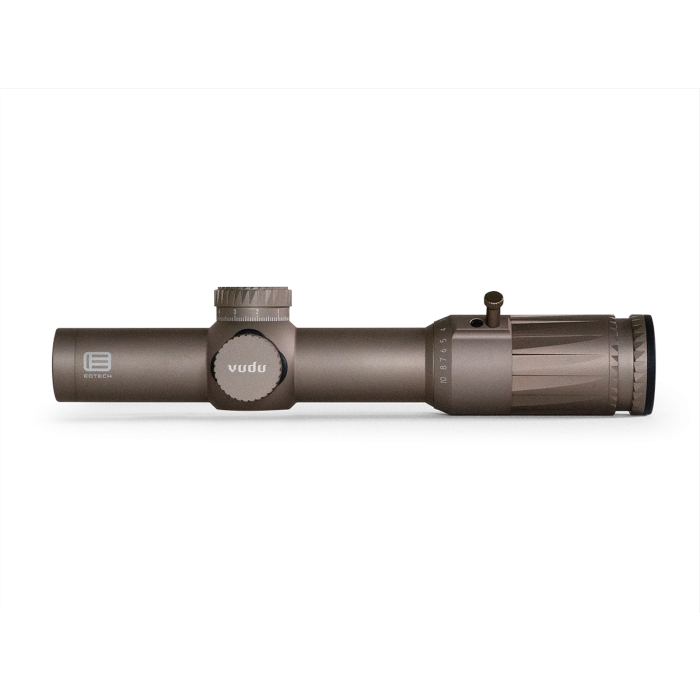

EOTECH’s Vudu 1-10×28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.

Included in the box:

• Vudu® 1-10X28 Rifle Scope
• Operator Manual
• Reticle Manual
• Throw Lever
• Lens Cleaning Cloth

Operator Manuals:

• Vudu 1-10X28 Manual
• SR4, SR5 & LE5 Reticle Manual

First Focal Plane

Overall Length

10.63″ (270 mm)

Weight

21.3 oz (603 g)

Magnification

1-10X

Tube Diameter

34 mm

Objective Diameter

28 mm

Power Source

CR2032

Eye Relief

1X: 3.27-3.90″ (83-99 mm)

10X: 3.35-3.62″ (85-92 mm)

Field-of-View @ 100 Yards

1X: 116.6 ft (35.5 m)

10X: 11.7 ft (3.6 m)

Country of Origin

Made in Japan

Reticle Specifications

Vudu SR-4 MOA Reticle

The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.

Adjustment Graduation Per Click

0.25 MOA

Adjustment Graduation Per Rotation

40 MOA

Total Elevation Travel

100 MOA

Total Windage Travel

80 MOA

Vudu SR-5 MRAD Reticle

The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

15 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Vudu LE-5 MRAD Reticle

The LE-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision cross-hair and the secondary windage and elevation features allow for precise holds on those longer range shots.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

15 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Restrictions& Considerations

Before Making A Purchase:

Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain a RMA number.

Export Restrictions:

Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774. EOTECH, LLC does not authorize any of its dealers or distributors to export this commodity without prior, written authorization, and will not provide warranty or post-sales support of unauthorized international exports.

Prop 65 Warnings:

This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
