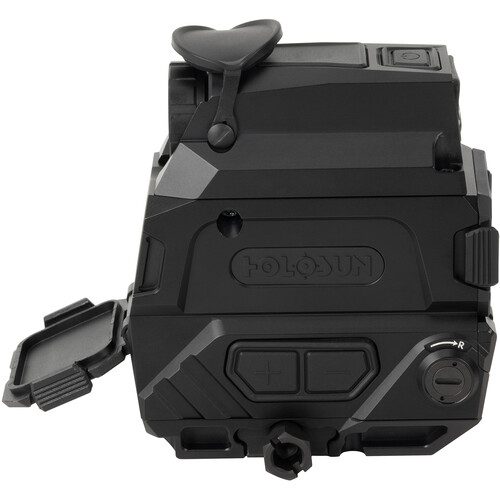

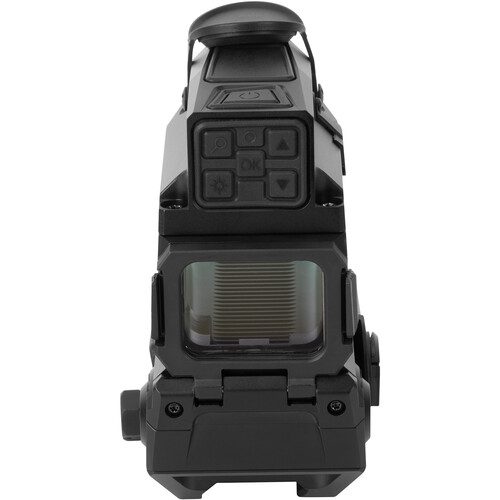

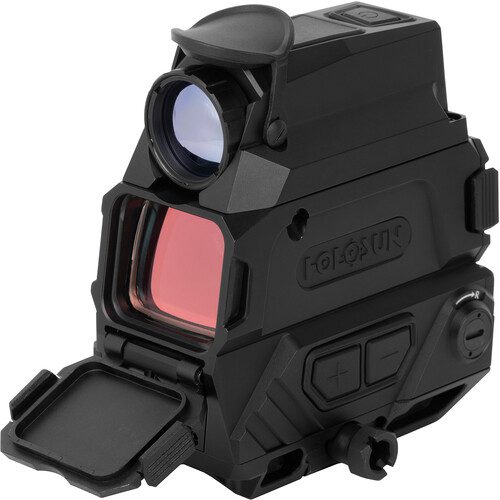

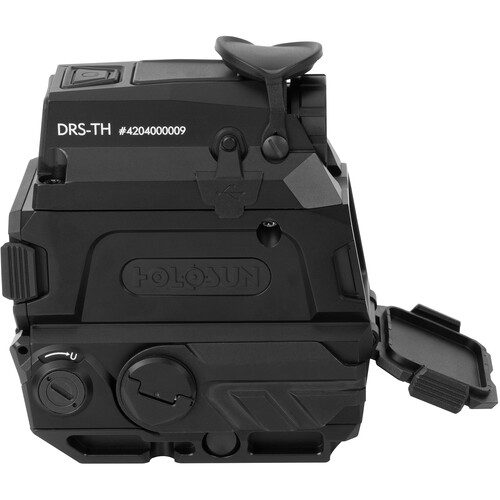

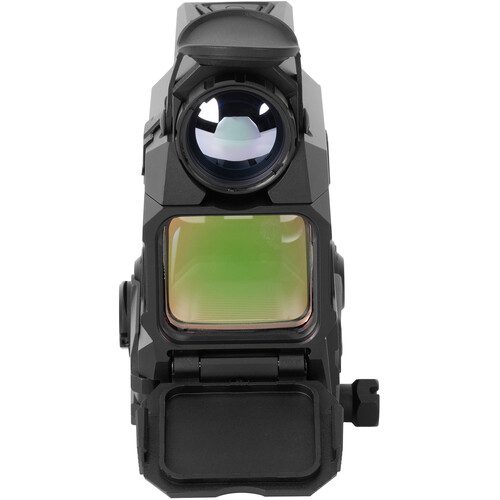

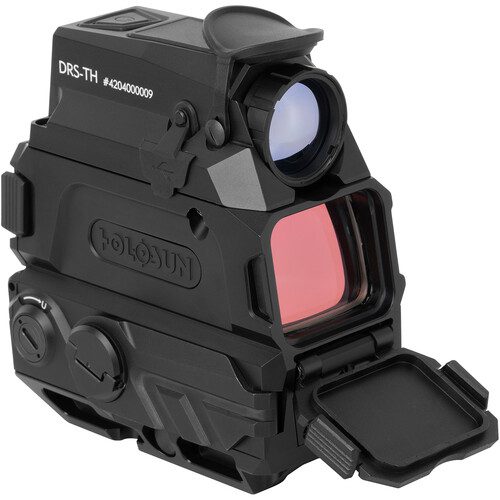

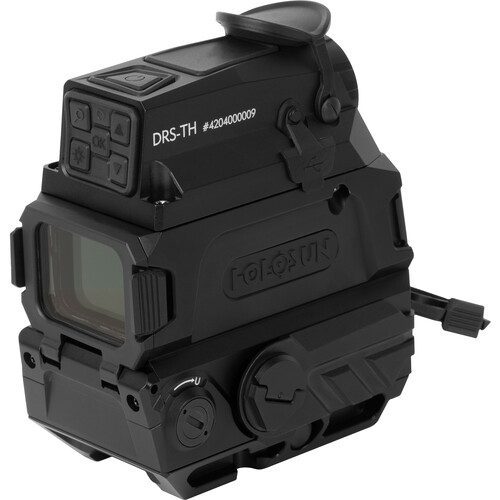

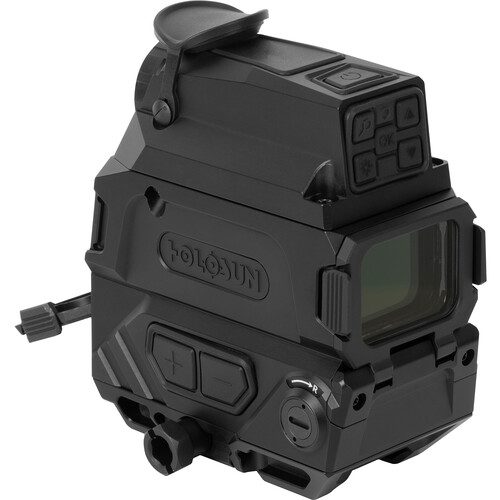

Holosun DRS-TH Thermal Red Dot Optic 256 x 192 Thermal Sensor 50 FPS Sight 8X Zoom
– Overview –
The Holosun DRS-TH (Digital Reflex Sight – Thermal) redefines the boundaries of red dot optic technology.
Using a 256×192 Thermal Sensor, the DRS-Th fuses together your traditional red dot optic with a thermal overlay to give you the best of both worlds.
Up to 10 hours of battery runtime for the thermal sensor and over 50,000 hours of runtime for your red dot gives users an optic that can keep up with the most demanding tasks.
White Hot, Black Hot, Outline and Highlight modes give you flexibility depending on the settings.
Capture the action through the thermal with the built in internal video recording that is as easy as a single button press.
If thermal isn’t needed for the task, simply flip down the front lens cap and use the DRS-TH just as you would any of our traditional red dot optics giving you the best of both worlds.
Items Dimensions (in inches)
In the Box
- 2x 18350 Li-ion Rechargeable Batteries
- Multi Tool
- Wrench
- Lens Cloth
- USB Cable
– TECH & FEATURES –
- Shake Awake™
- Multiple Reticle System
- Multilayer Reflective Glass
Shake Awake™
Shake Awake Technology is a standard feature on all current model Holosun optics and serves to extend battery life by deactivating the optic’s LED while not in use. A highly sensitive motion sensor works to detect motion keeping the LED powered on during use. This allows for duty or concealed carry with seamless operation throughout your day or shift. At the end of your day or shift when your firearm is stored, the motion sensor will detect a motionlessness state and after 10 minutes (default setting) Shake Awake Technology powers the LED off until motion is again detected. Shake Awake offers settings from 10 minutes to 12 hours depending on the model and can be deactivated altogether if preferred. The slightest touch of the optic instantly reactivates the LED so your Holosun optic is ready when needed.
– Specification –
- Red Dot Sight w/ Fusion Thermal Overlay
- 50 Frames Per Second Overlay Refresh Rate
- Digital Cross or T Style Night Vision Reticles
- Internal Video Recording System
- Digital Zoom: 1x, 3x, 5x
- Multi-Reticle System™ (MRS): 2 MOA Dot, 65 MOA Circle, Circle-Dot
Holosun DRS-TH Thermal Red Dot OPTICAL SPECS
Reticle | 2 MOA Dot & 65 MOA Circle |
Light Wavelength | 650nm |
Reticle Color | Red |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
ELECTRONIC SPECS
Power Source | Battery |
Battery Type | 18350 |
Battery Life (Hours) | 10 Hours |
Thermal Modes | White Hot / Black Hot / Outline / Highlight |
Digital Modes | Thermal Fusion |
Video Recording | Internal |
Screen Refresh Rate | 50 FPS |
Digital Screen | 1024×768 OLED |
Brightness Setting | 8 DL & 4 NV |
PHYSICAL SPECS
Window Size | 1.25×0.98 |
Dimension (in) | 3.7×2.2×3.5 |
Weight (oz) | 18.5 |
MECHANICAL SPECS
Housing Material | 7075 T6 Aluminum |
Surface Finish | Anodize |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
Storage Temperature | -40℃~70℃ |
Working Temperature | -20℃~51℃ |
Submersion | IP67 |
Vibration | 1000G |
MAGNIFICATION SPECS
Digital Zoom | 1x 3x 5x |
Transmittance | NA |
Diopter | NA |
Field of View | N/A |
Eye Relief | N/A |
Exit Pupil | N/A |
Magnification | Digital |
