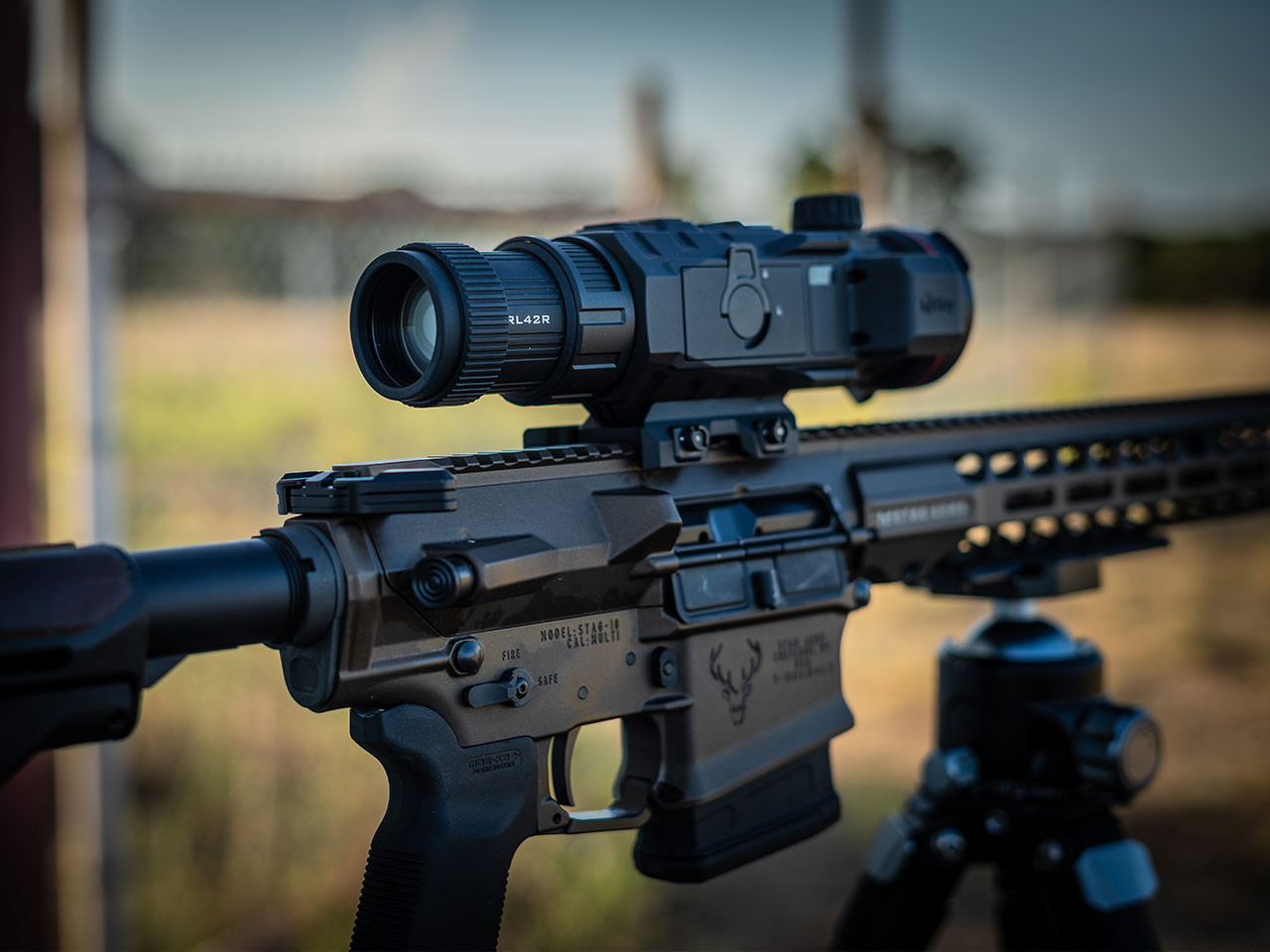

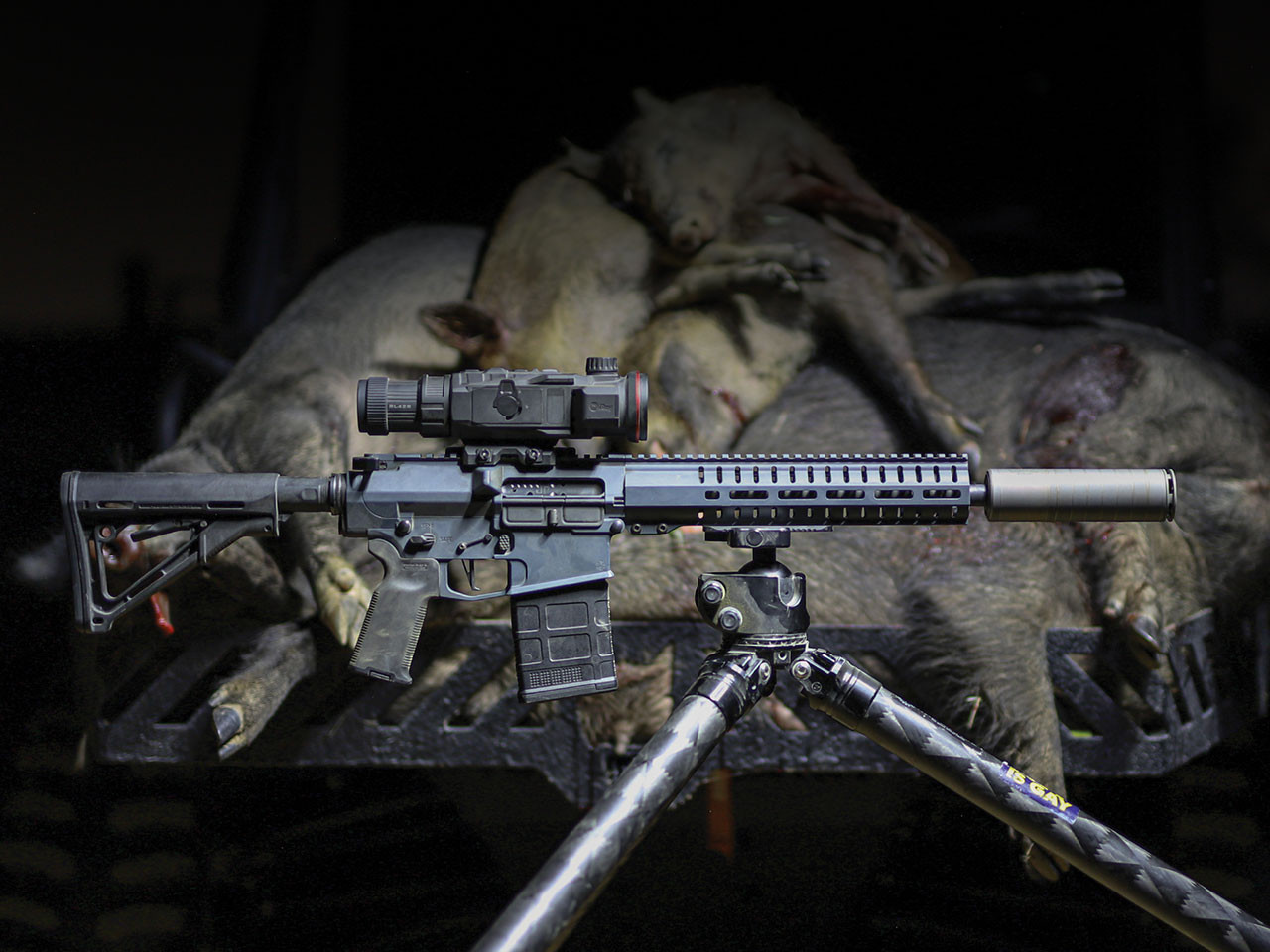

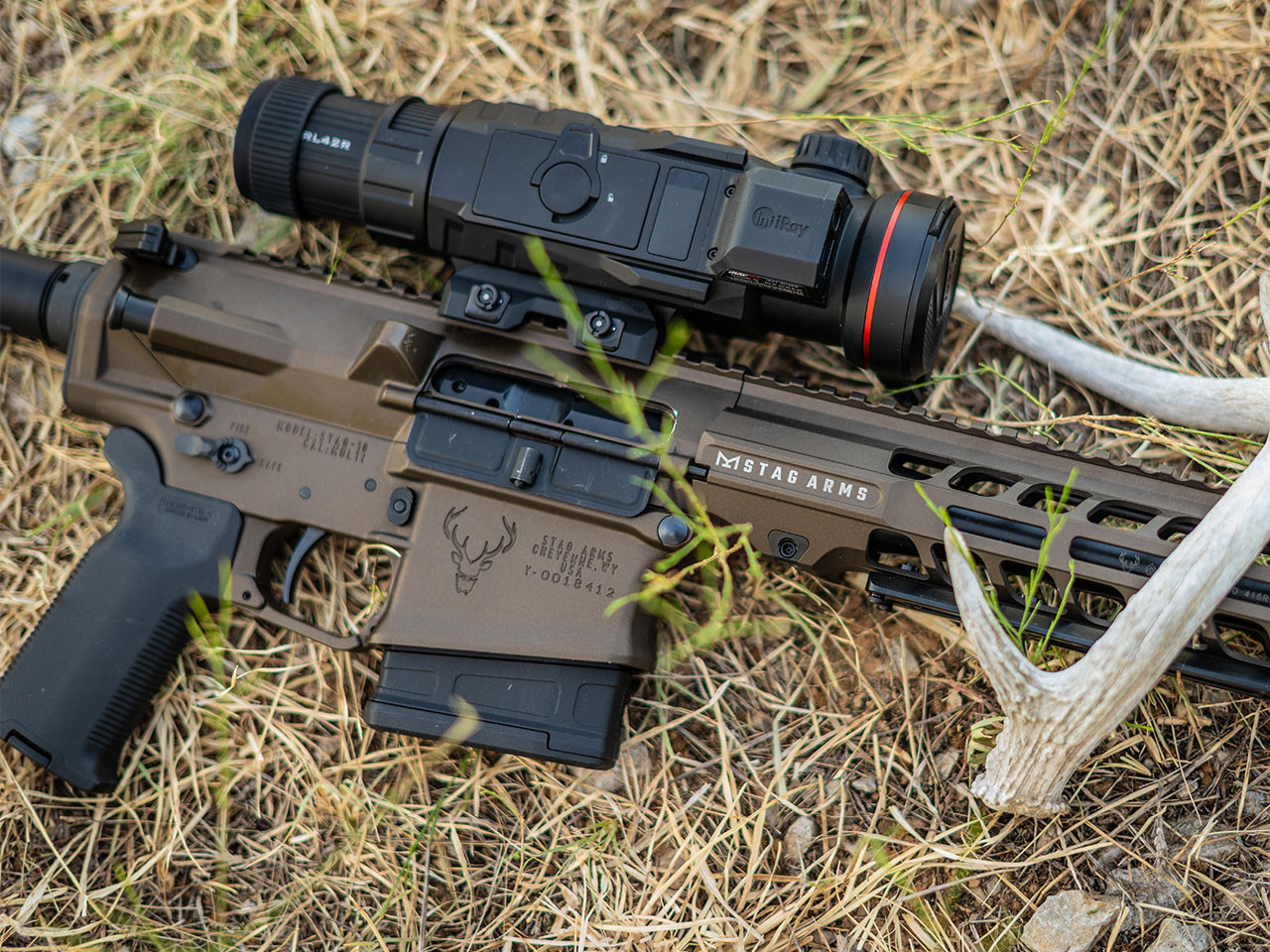

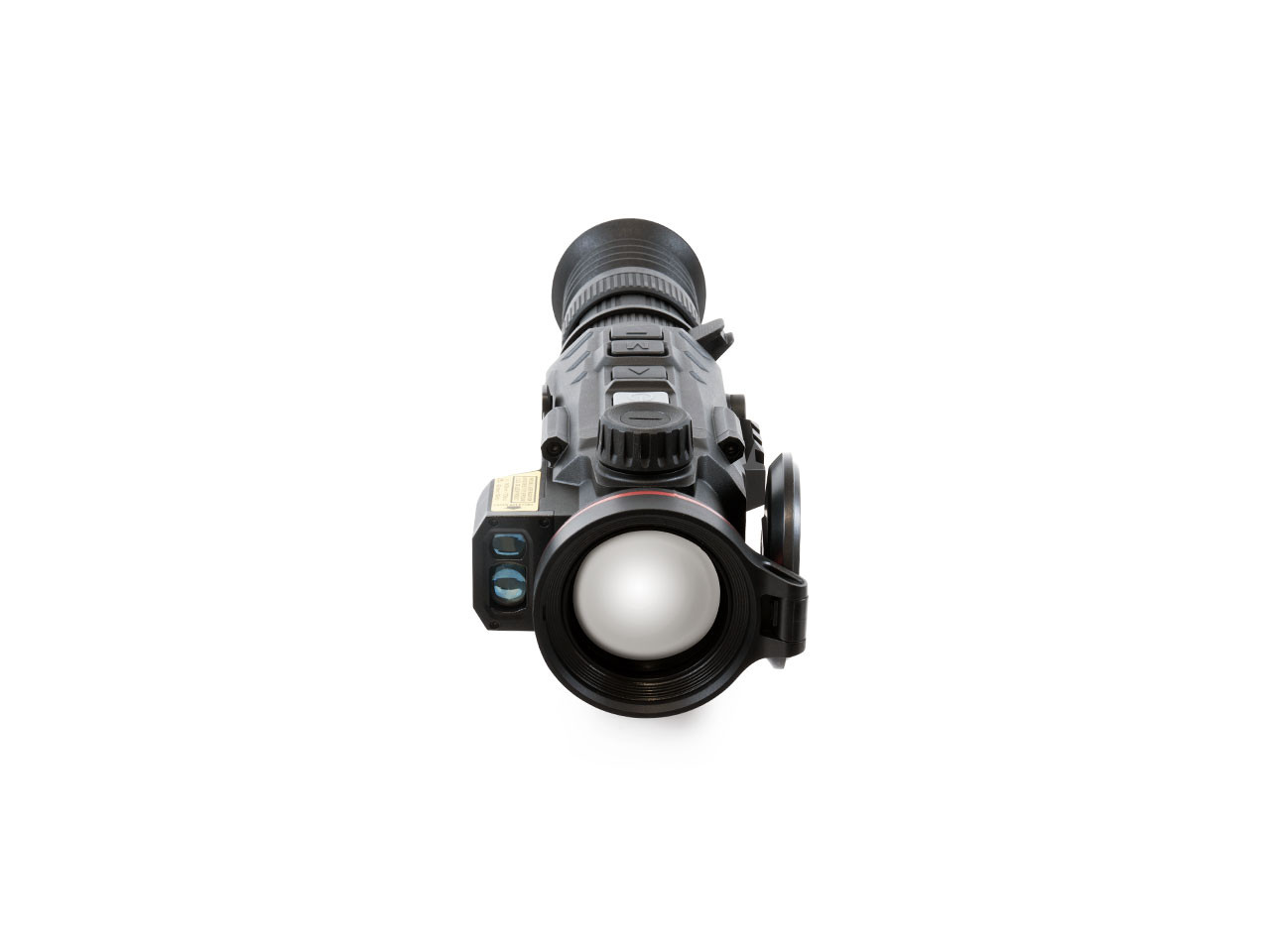

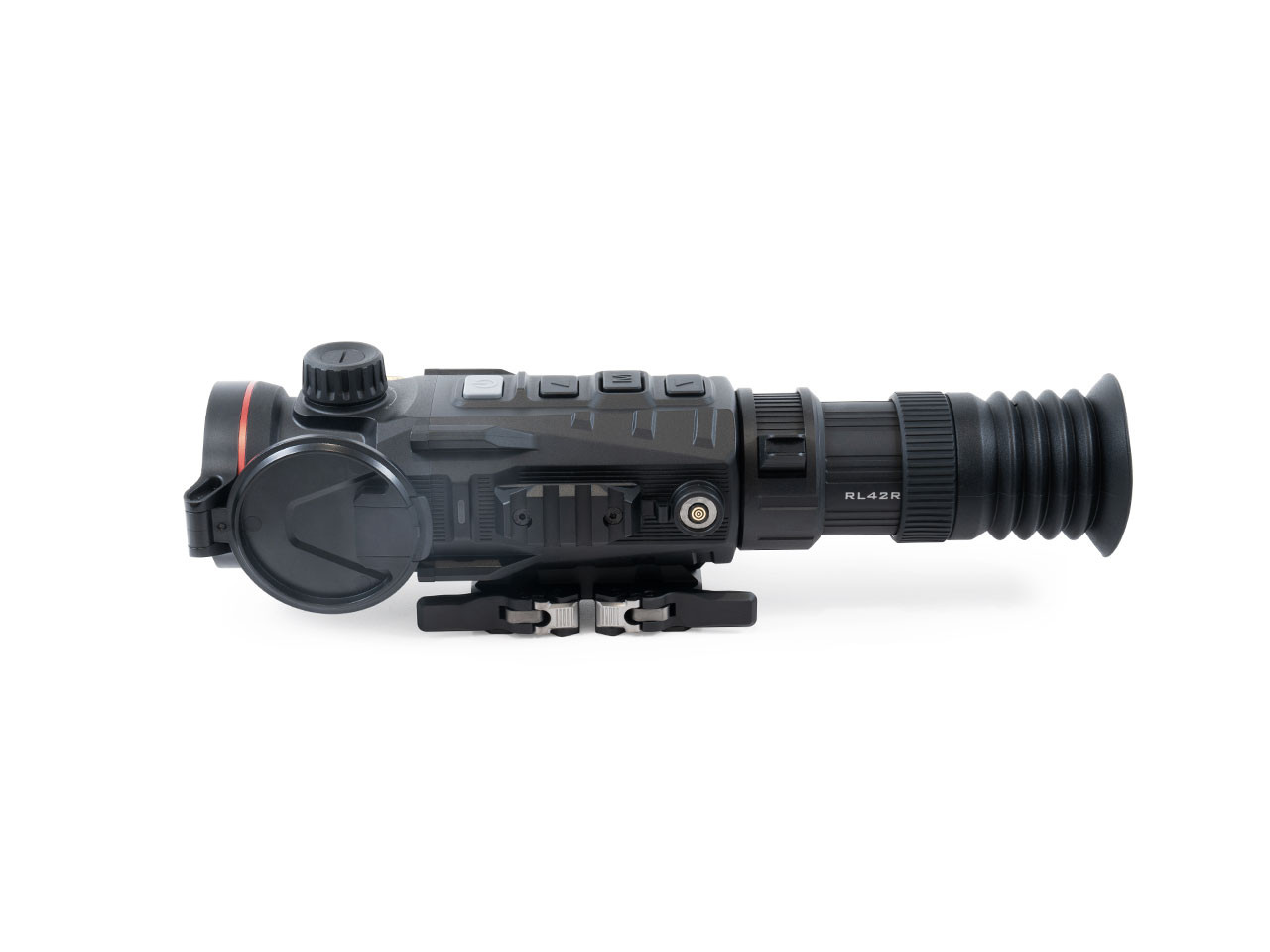

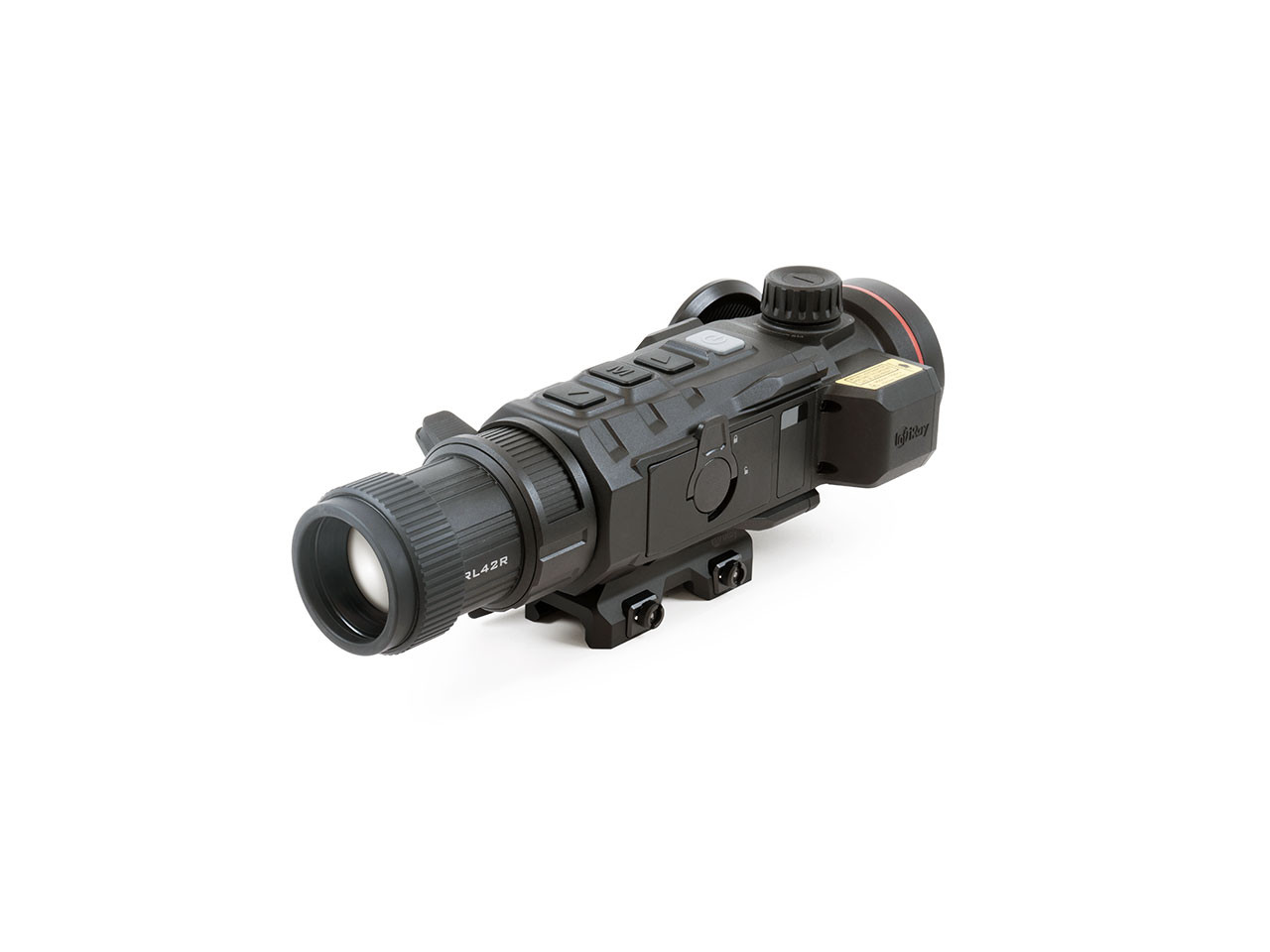

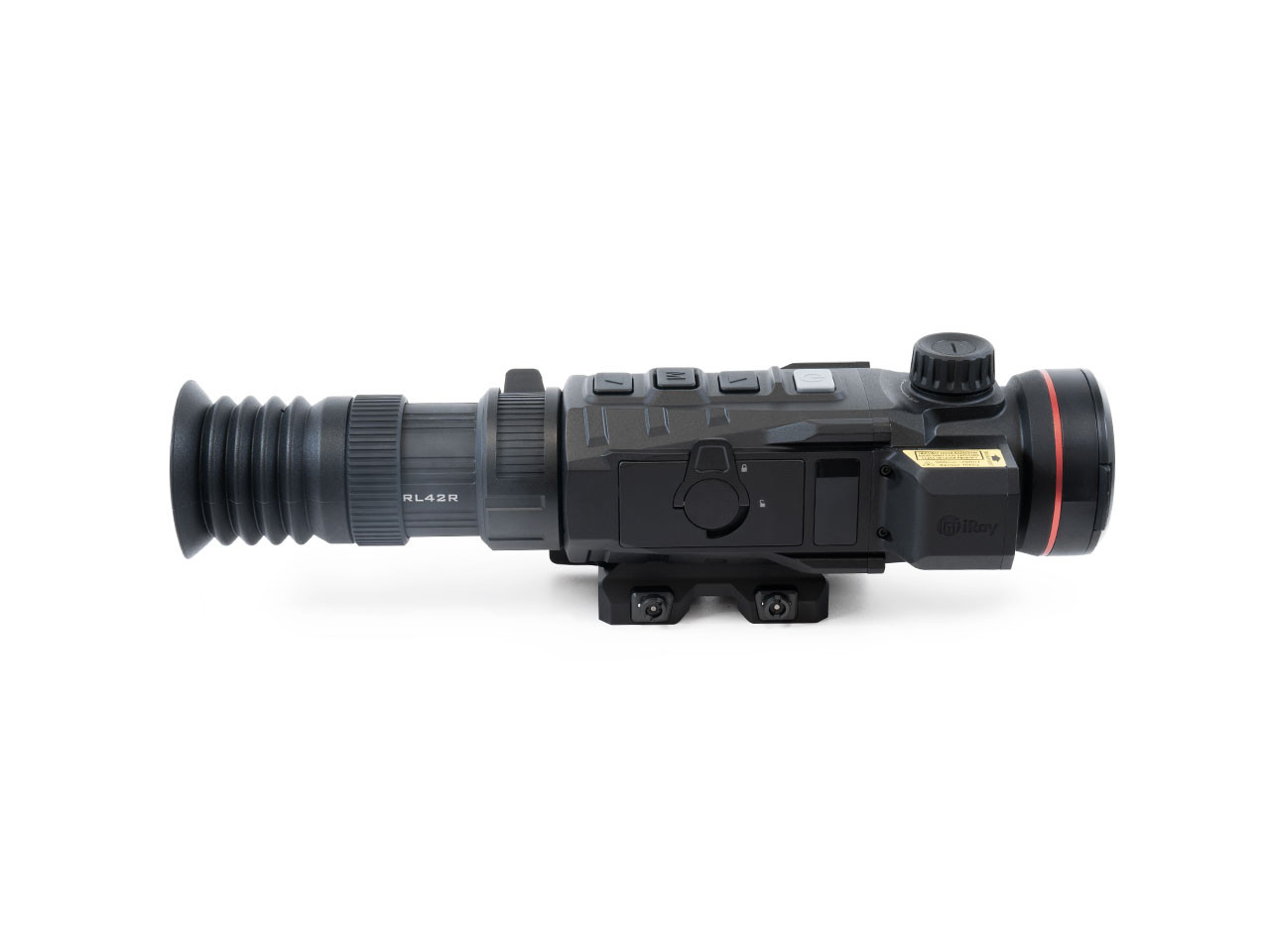

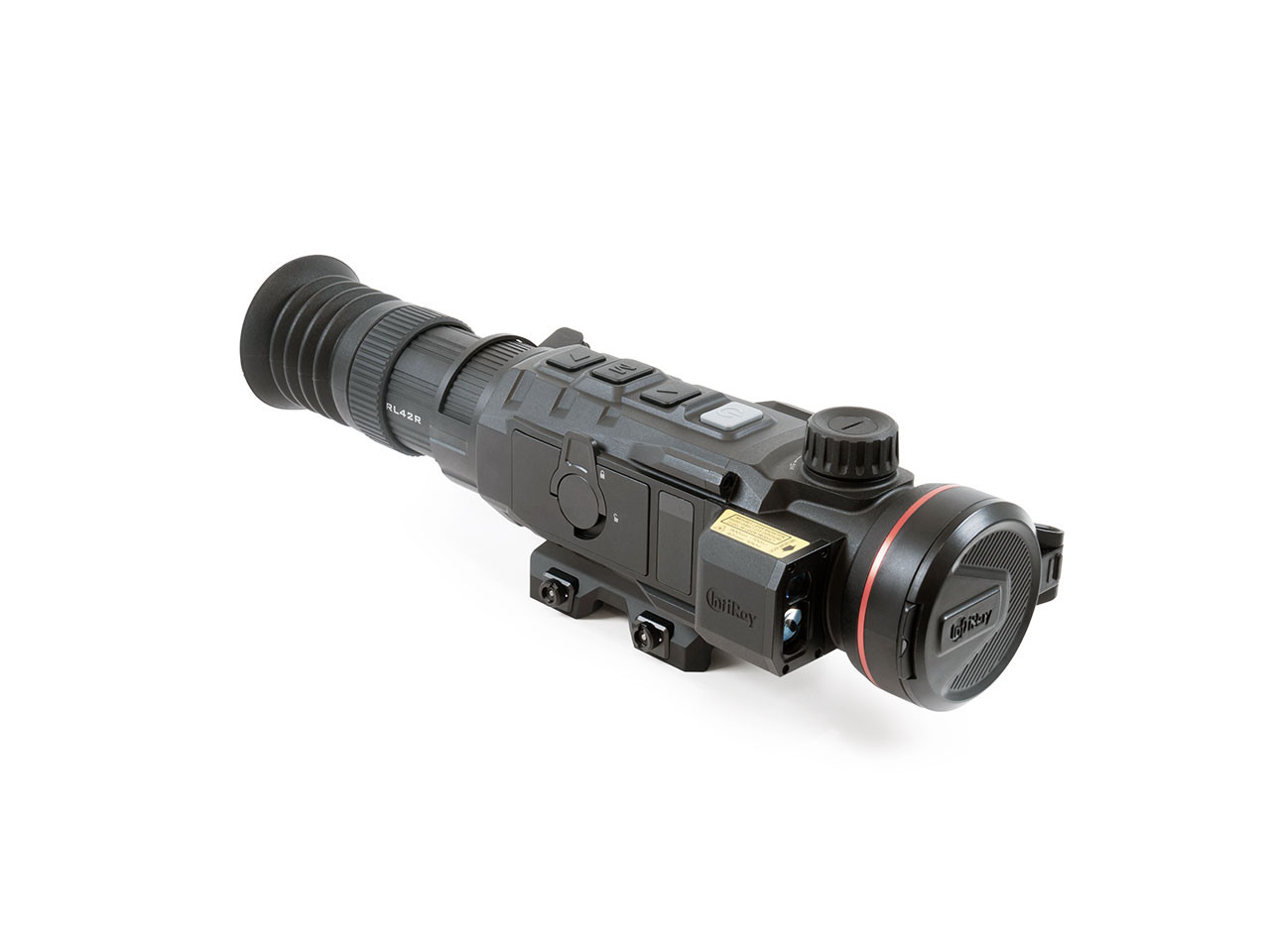

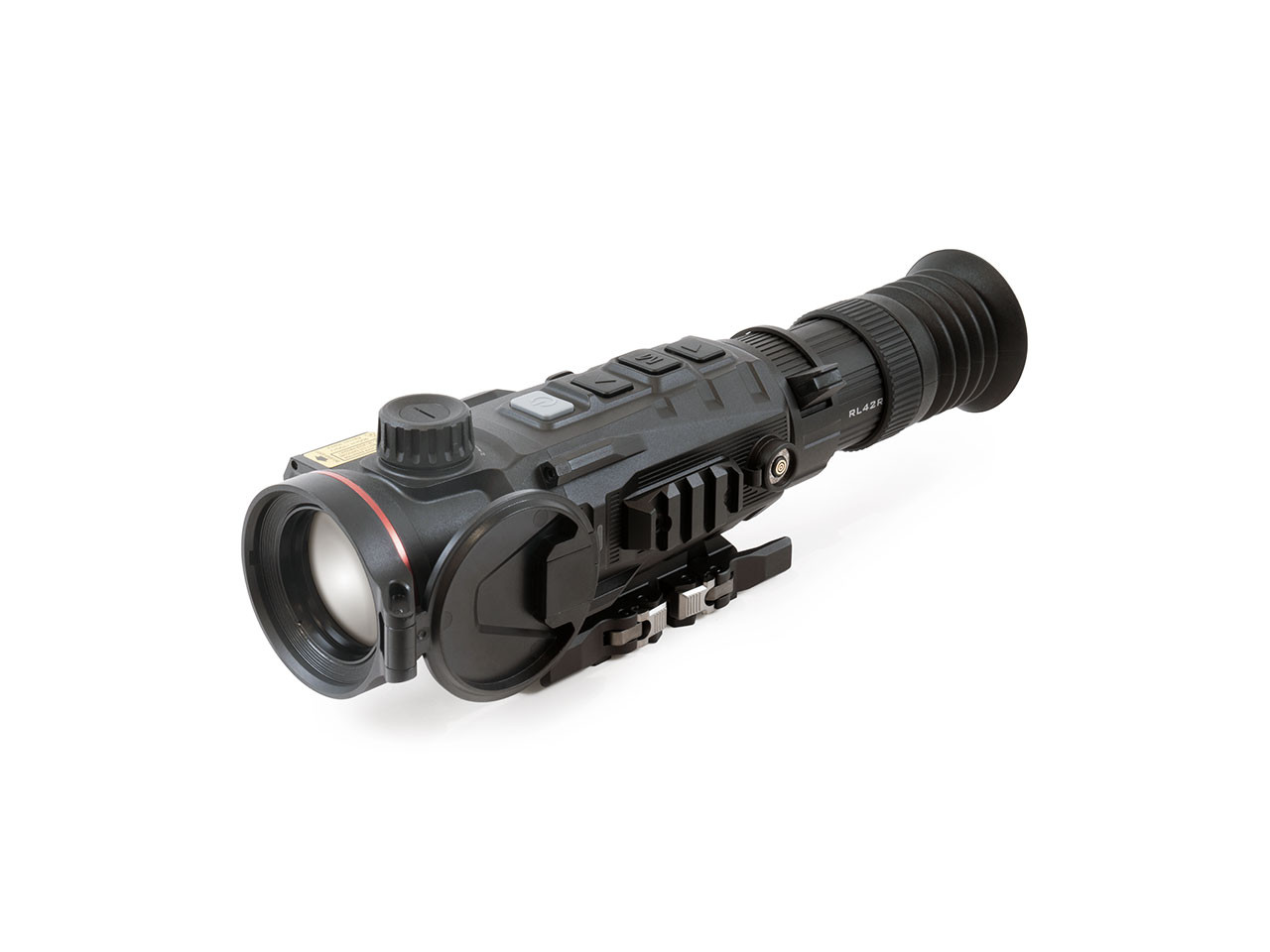

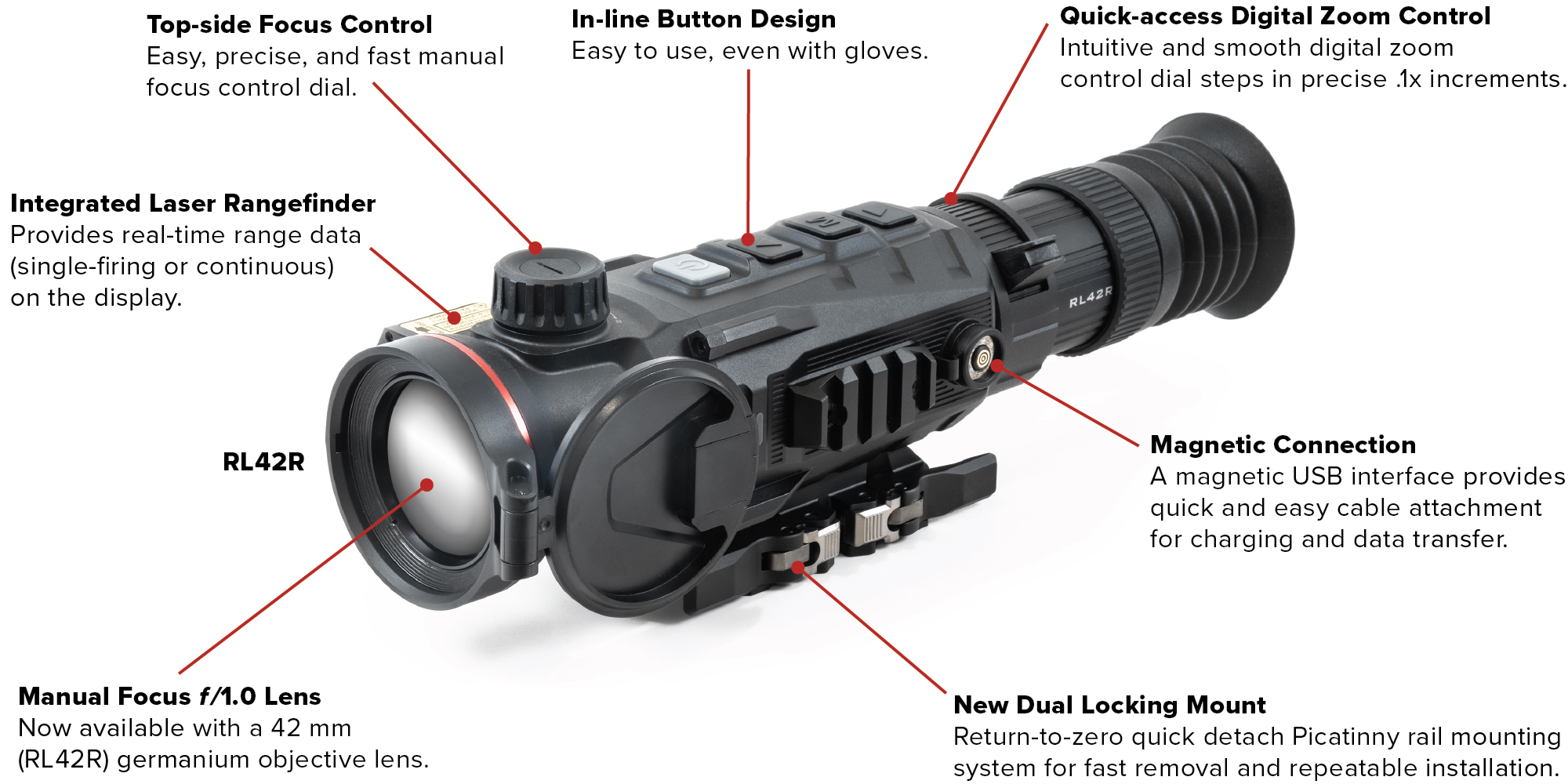

IRAYUSA INFIRAY RICO MK2 Thermal Weapon Sight Scope 4X42mm LRF Rangefinder RL42R

IRAYUSA INFIRAY RICO MK2 Thermal LRF RL42R Optics

Exit Pupil

1.0

Eye Relief

60mm

Eyepiece Focal Length

4.6

Digital Magnification

4X

Vertical Angular Field of View

4.6

Objective Focusing Range

Germanium

Focusing Mechanism

Manual Focus

Objective F#

1.0

Objective Diameter

42mm

Objective Lens Material

Germanium

Display Resolution

2560×2560

Detection Range

2000 Yards

Optical Magnification

4X

Eyepiece Diameter

Manual Focus

Display Type

AMOLED

Objective Focal Length

42mm

Diopter Range

-3 to +3

Horizontal Angular Field of View

6.2

Features & Performance

Warranty

5 Years

Startup Time

<10 Seconds, Instant from Standby

Color Palettes

White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet

Picture-in-Picture

Yes

Storage Capacity

32GB

Connector Output

Power/Data

Mobile App

Yes

Run Time

5+

Compatible With

5+

One-Shot Zero

2560×2560

Stand-by Mode

Yes

Connector Type

USB-C

External Power Source

USB-C

Country of Manufacture

China

Wifi

Yes

Onboard Recording

Yes

Image Capture

Yes

Video Output

Yes

Rangefinder

Integrated 1200 yd LRF

User-Updatable Firmware

Yes

Power Source

USB-C External, IBP-5 Li-ion Battery Pack

Reticle

8 (7 Static, 1 DIY)

Environmental Specifications

Operating Temperature Range

-4°F~122°F

Mean Time to Failure

China

Ingress Protection

IP67

Recoil Rating

1000 g/s² (300 Win./7mm Mag)

Physical

Mounting Interface

9.50

Housing Material

Magnesium Alloy

Height

3.75

Length

9.50

Weight

36.63 Oz.

Width

3.00

Sensor Specifications

Sensor Pixel Size

12μm

Thermal Sensitivity

<20mk

Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic

Spectral Response

384×288

Sensor Frame Rate

60hz

Device Technology

Thermal Imaging

Sensor Resolution

384×288

Sensor Type

InfiRay MICRO II
