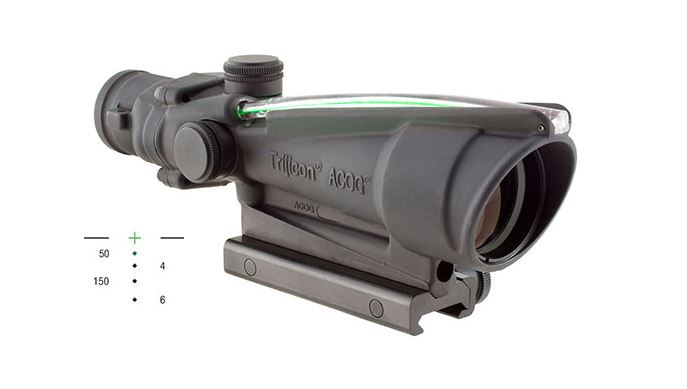

Trijicon ACOG® 3.5×35 BAC Scope 300 BLK BDC Green Crosshair Reticle TA11C100416

Trijicon ACOG® 3.5×35 BAC Scope 300 BLK BDC Green Crosshair Reticle TA11C100416

OVERVIEW
This 3.5×35 ACOG scope provides a dual-illuminated reticle using fiber optics and tritium for a bright aiming point in any light condition. The 300 blackout reticle with merged aiming points has been optimized for simplicity and efficiency. It allows the user to instantly switch between supersonic and subsonic ammunition without having to re-zero the optic. The supersonic BDC (out to 600 yds.) has been merged with the subsonic BDC (out to 200 yds.) to provide one set of aiming points for both types of ammunition. The reticle drops are based on an average of commonly available off-the-shelf subsonic and supersonic ammunition from a 16" barrel. This BDC reticle is not limited to one or two specific bullets: a majority of commonly available ammunition will fall within the 2 MOA diamond aiming points. The 2 MOA diamonds offer a balance of speed and versatility based on the unique performance of the 300 Blackout caliber. The drops in MOA for each aiming point are provided for users who wish to develop their own handloads for use on firearms with a barrel of 16" or shorter, or for those who wish to deviate from the recommended zero distances.

Length x Width x Height
8 in x 2.1 in x 2.9 in
(203.2mm x 53.34mm x 73.66mm)
Weight
17.6 oz. (498.95g)
Magnification
3.5x
Objective Size
35mm
Reticle Pattern
Crosshair
Day Reticle Color
Green
Night Reticle Color
Green
Bullet Drop Compensating (BDC)
Yes
Caliber
300 BLK
Bindon Aiming Concept™ (BAC)
Yes
Illumination Source
Fiber Optics & Tritium
Power Source
Fiber Optics & Tritium
Adjustment
½ MOA per click
Eye Relief
2.39 in. (60.71mm)
Exit Pupil
0.39 in. (9.91mm)
Field of View (degrees)
5.5°
Field of View (feet)
28.9 ft. @ 100 yds. (9.63m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
