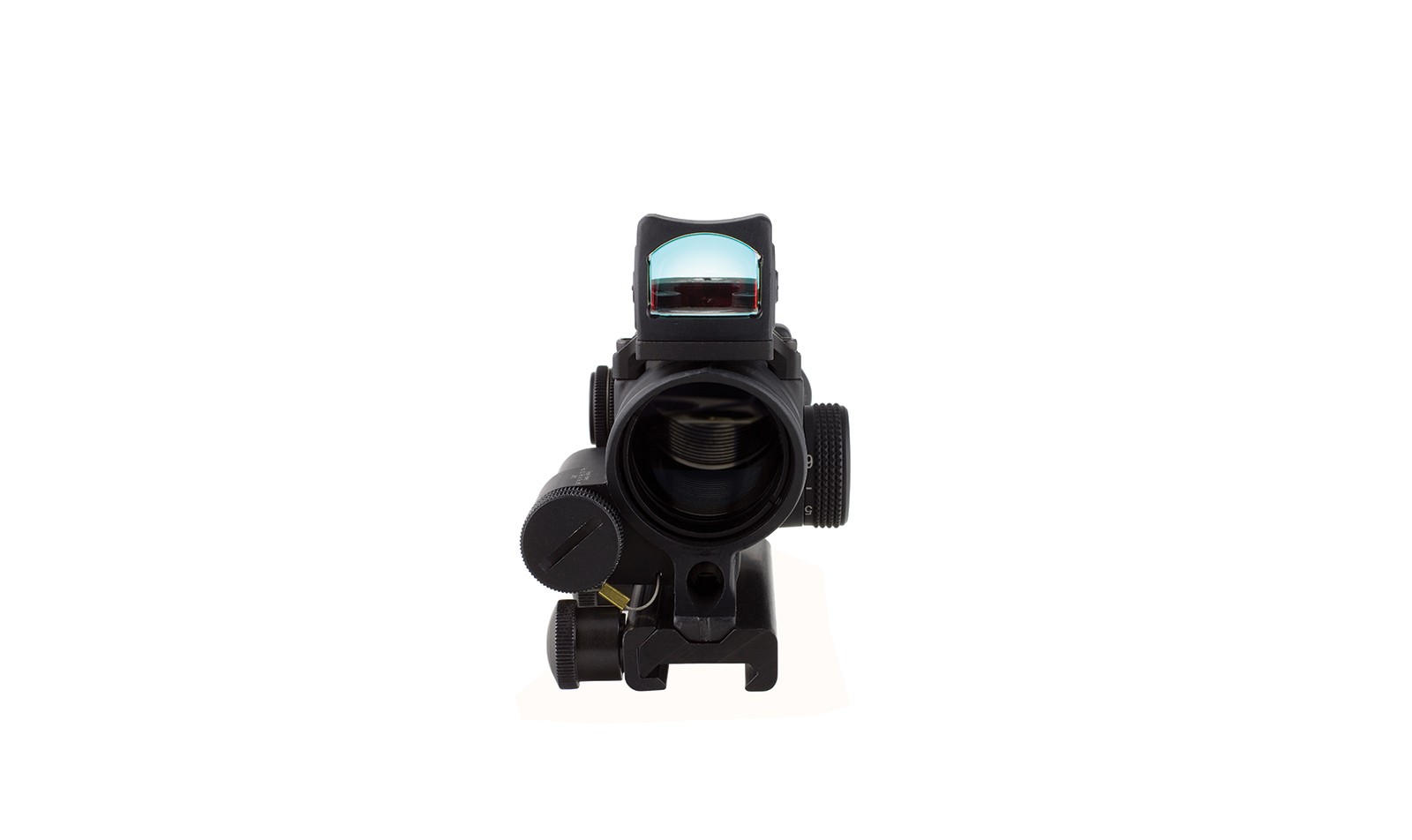

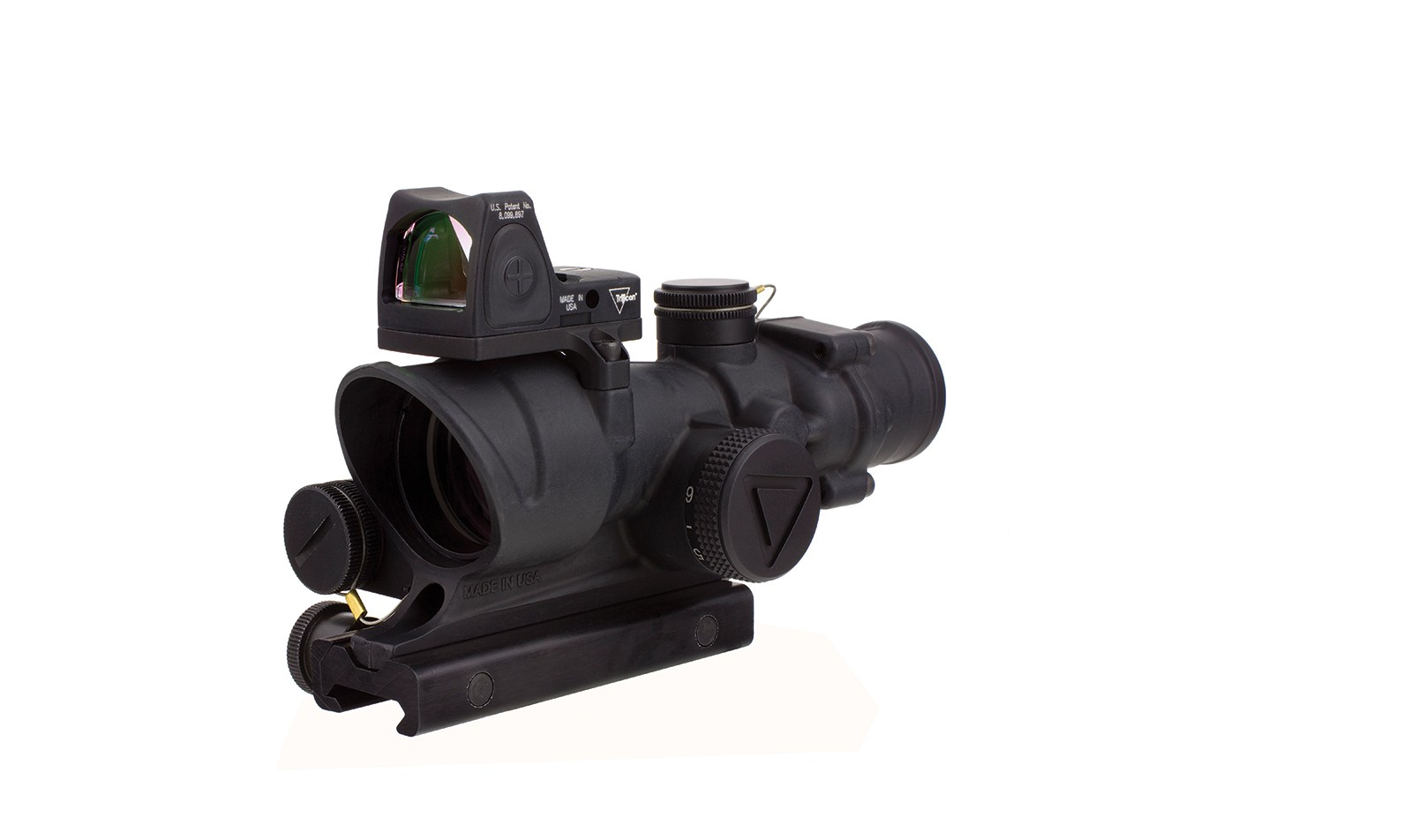

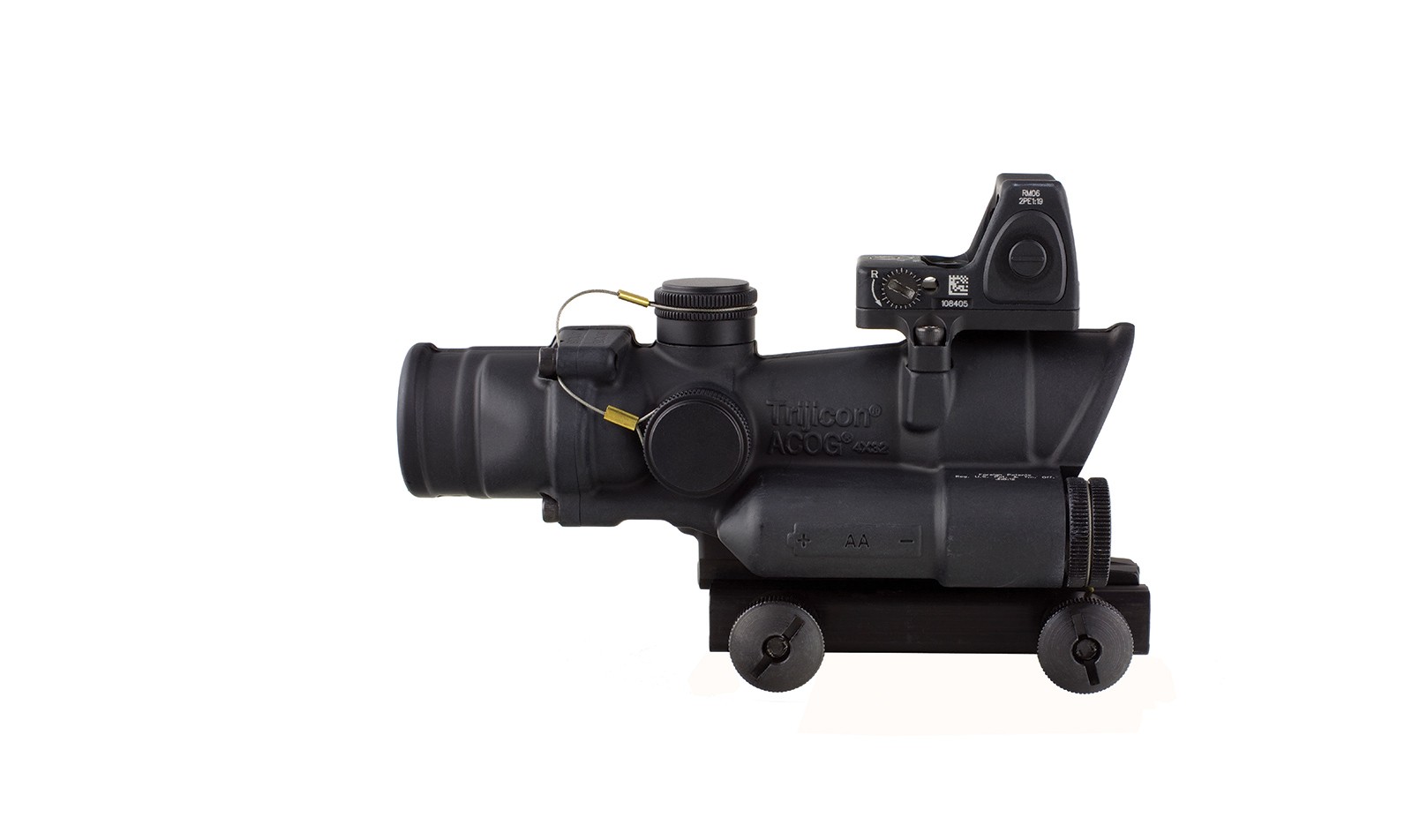

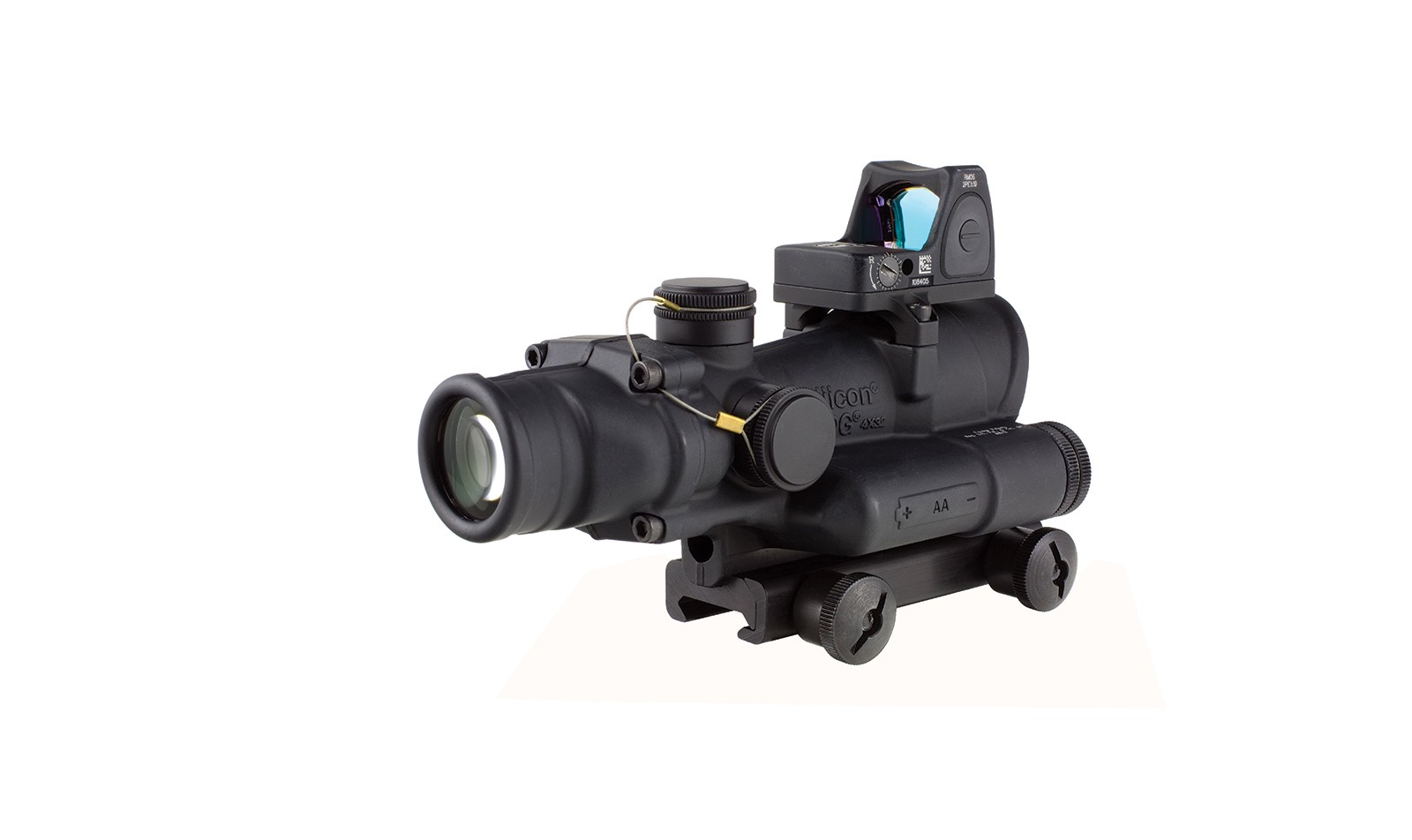

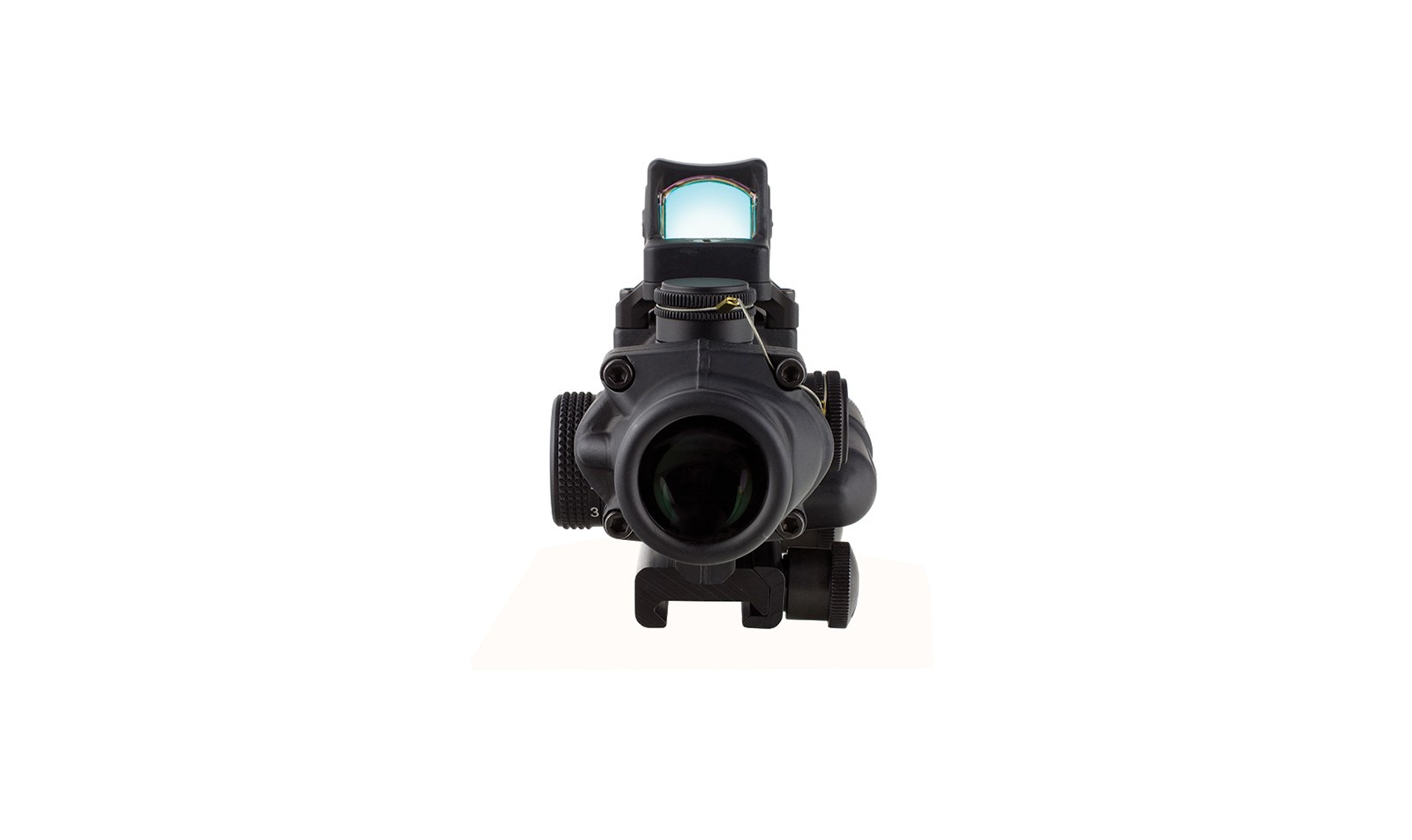

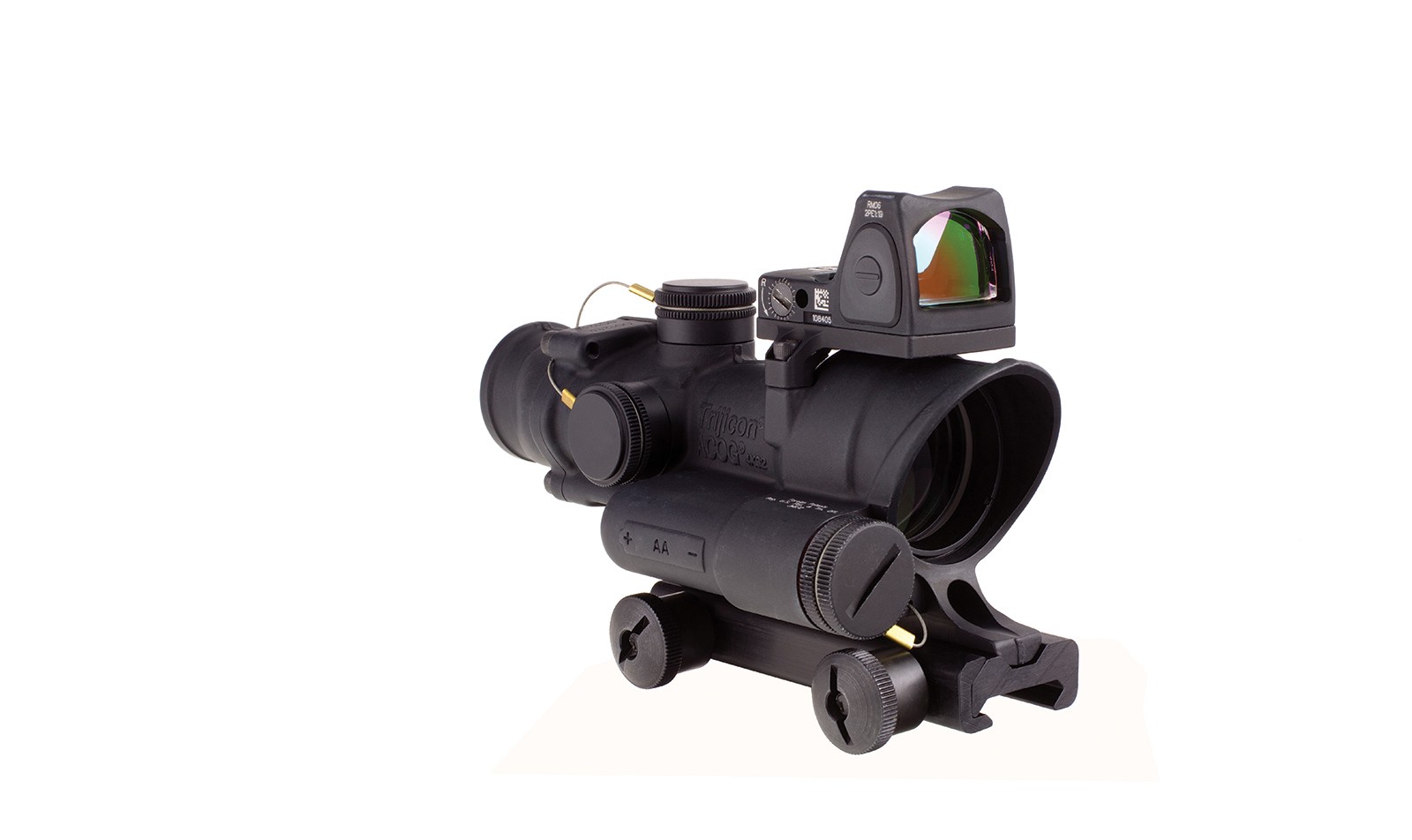

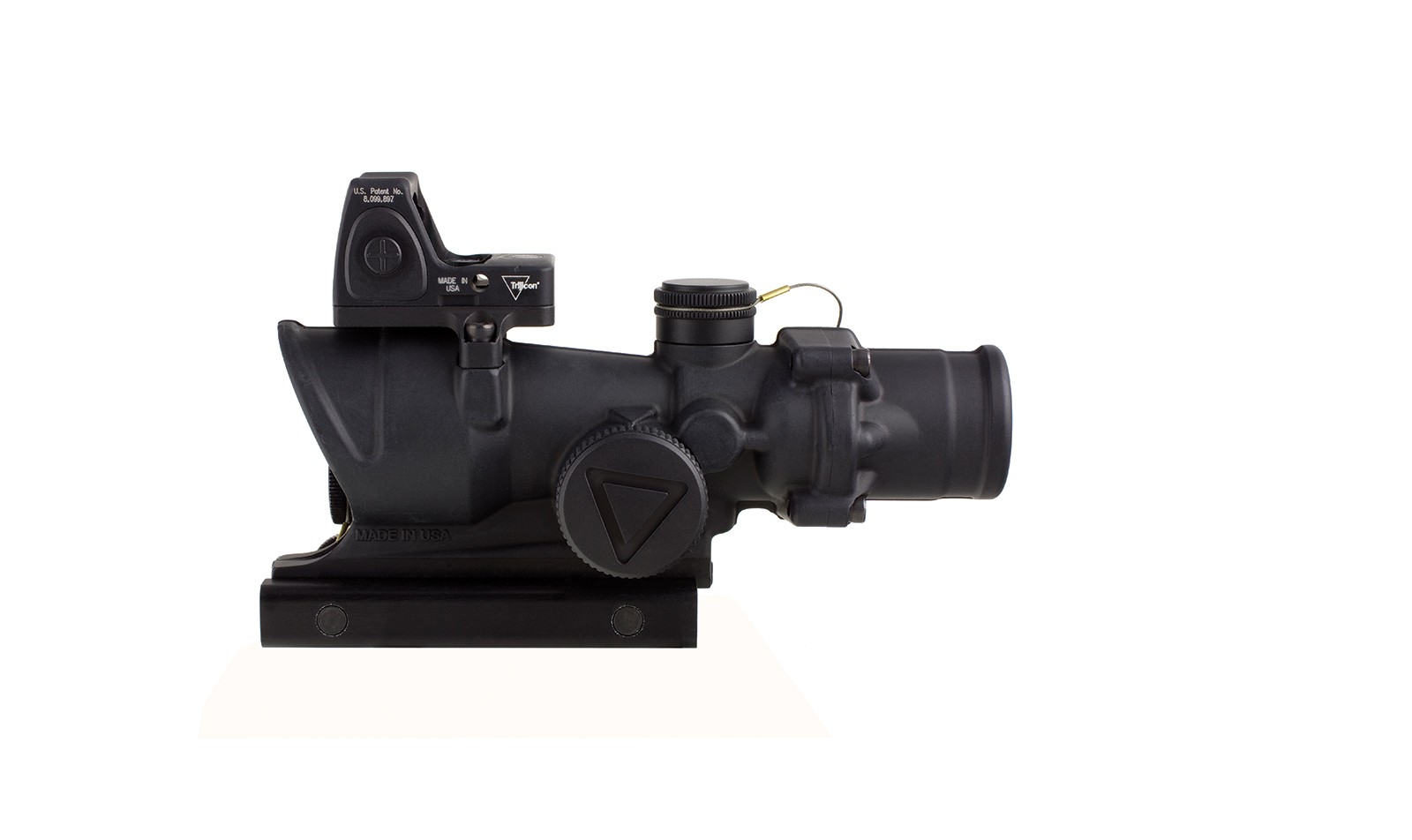

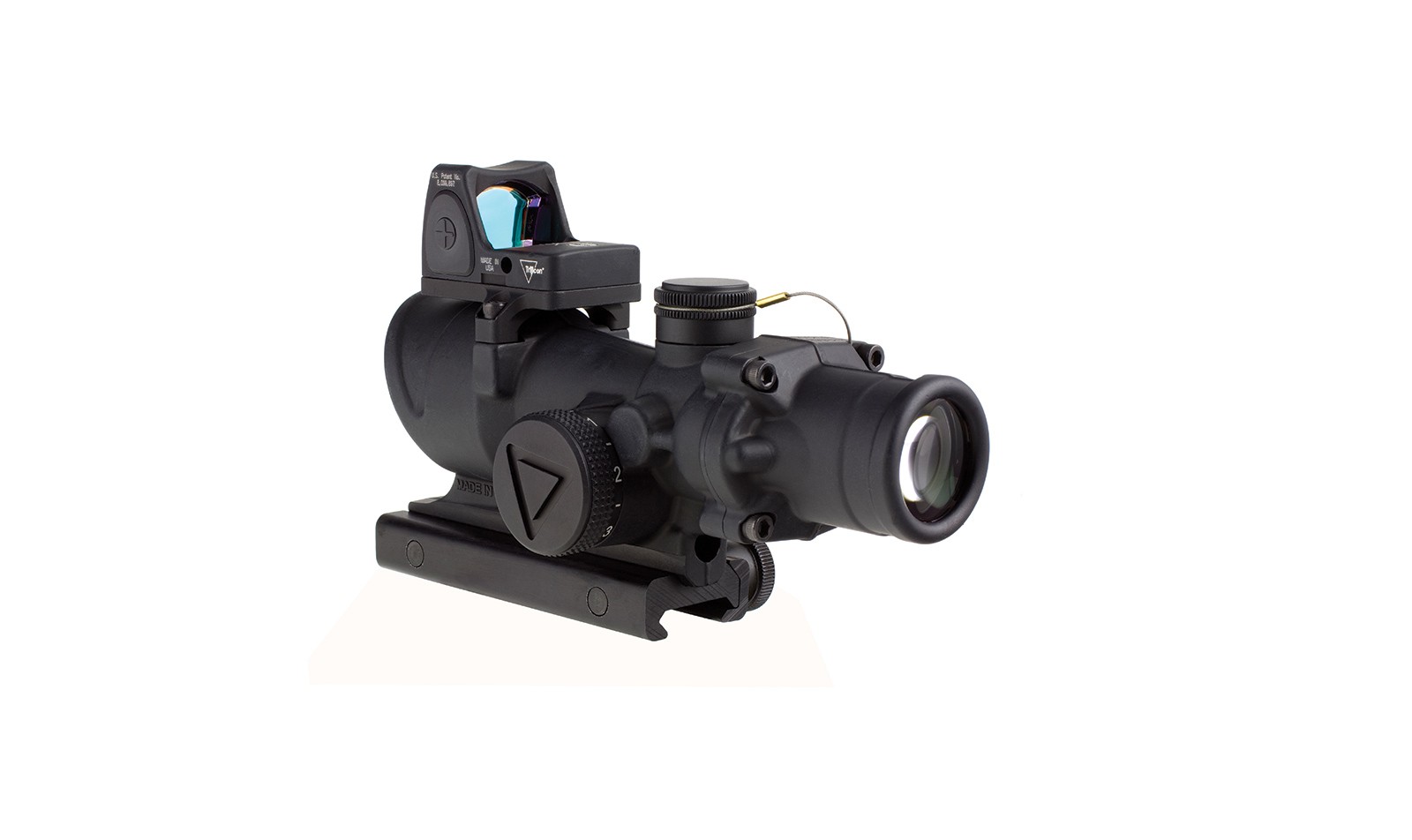

Trijicon ACOG® 4×32 LED 223 / 5.56 BDC Illuminated Red Crosshair & 3.25 MOA RMR® Type 2 TA02-C-100564

Trijicon ACOG® 4×32 LED Riflescope – .223 / 5.56 BDC
LED Illuminated Red Crosshair .223 Reticle, Thumbscrew Mount, Adjustable LED 3.25 MOA Red Dot RMR® Type 2

From the legendary ACOG® family of products, the LED ACOG is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an "off" between each setting, allowing the operator to determine how much to illuminate the reticle – even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours (on setting #4). Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminum, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 4×32 LED ACOG is also compatible with most other 4×32 ACOG accessories available. The TA02-C-100564 comes paired with a 3.25 MOA Adjustable Ruggedized Miniature Reflex (RMR) Type 2 LED red dot sight (RM06). The 4×32 LED ACOG body has been optimized by moving the RMR Type 2 mount forward to maximize RMR Type 2 performance in conjunction with the ACOG.

Length x Width x Height
6 in x 2.9 in x 2.5 in
(152.4mm x 73.66mm x 63.5mm)
Weight
19.3 oz. (547.15g)
Magnification
4x
Objective Size
32mm

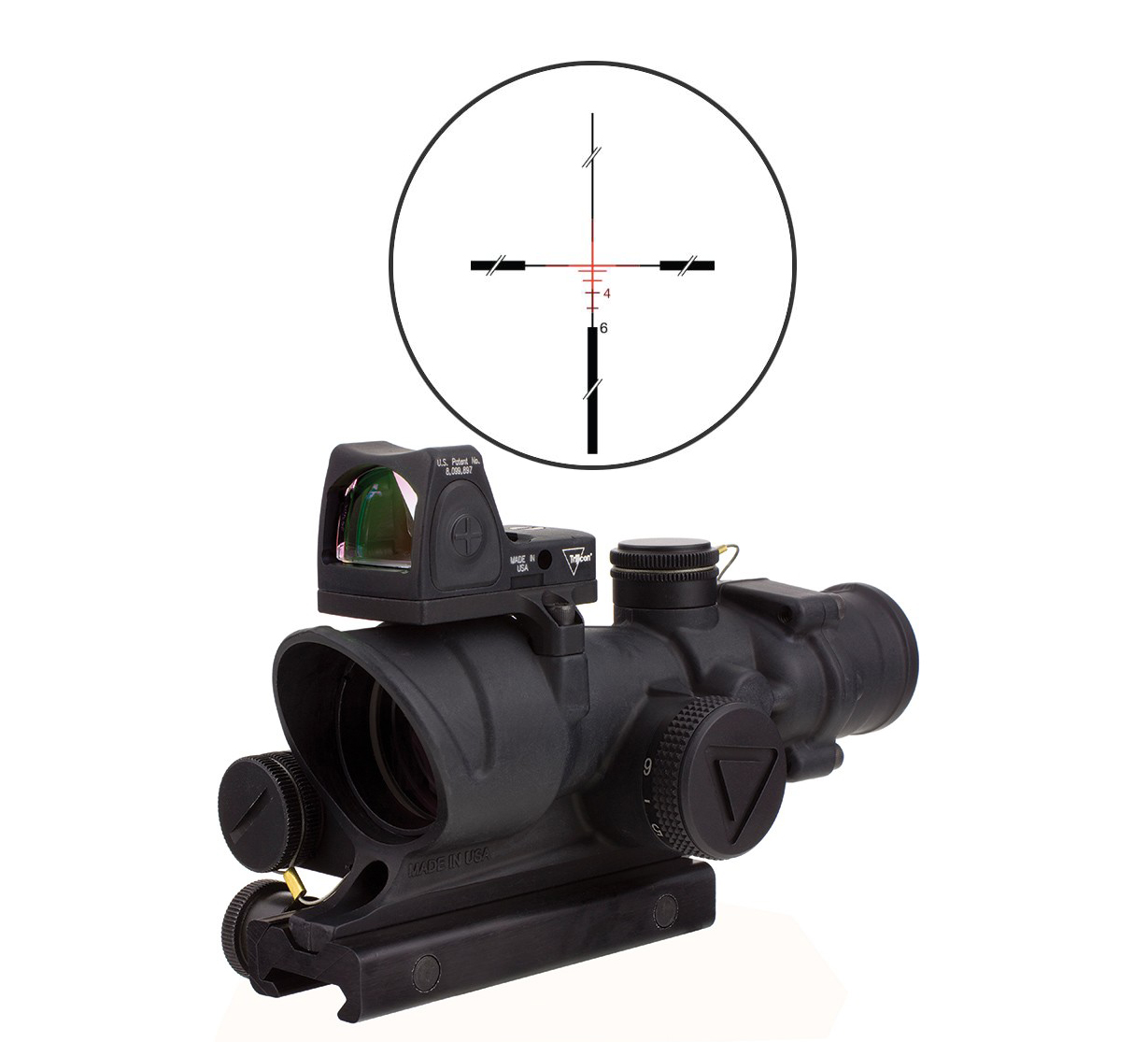

Reticle Pattern
Crosshair
Day Reticle Color
Red
Night Reticle Color
Red
Bullet Drop Compensating (BDC)
Yes
Caliber
0.223
Bindon Aiming Concept™ (BAC)
Yes
Illumination Source
LED
Power Source
AA Lithium or Alkaline Battery
Battery Life
Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F)
Adjustment
2 clicks per inch @100 yards
Eye Relief
1.5 in. (38.1mm)
Exit Pupil
0.32 in. (8.13mm)
Field of View (degrees)
7°
Field of View (feet)
36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
