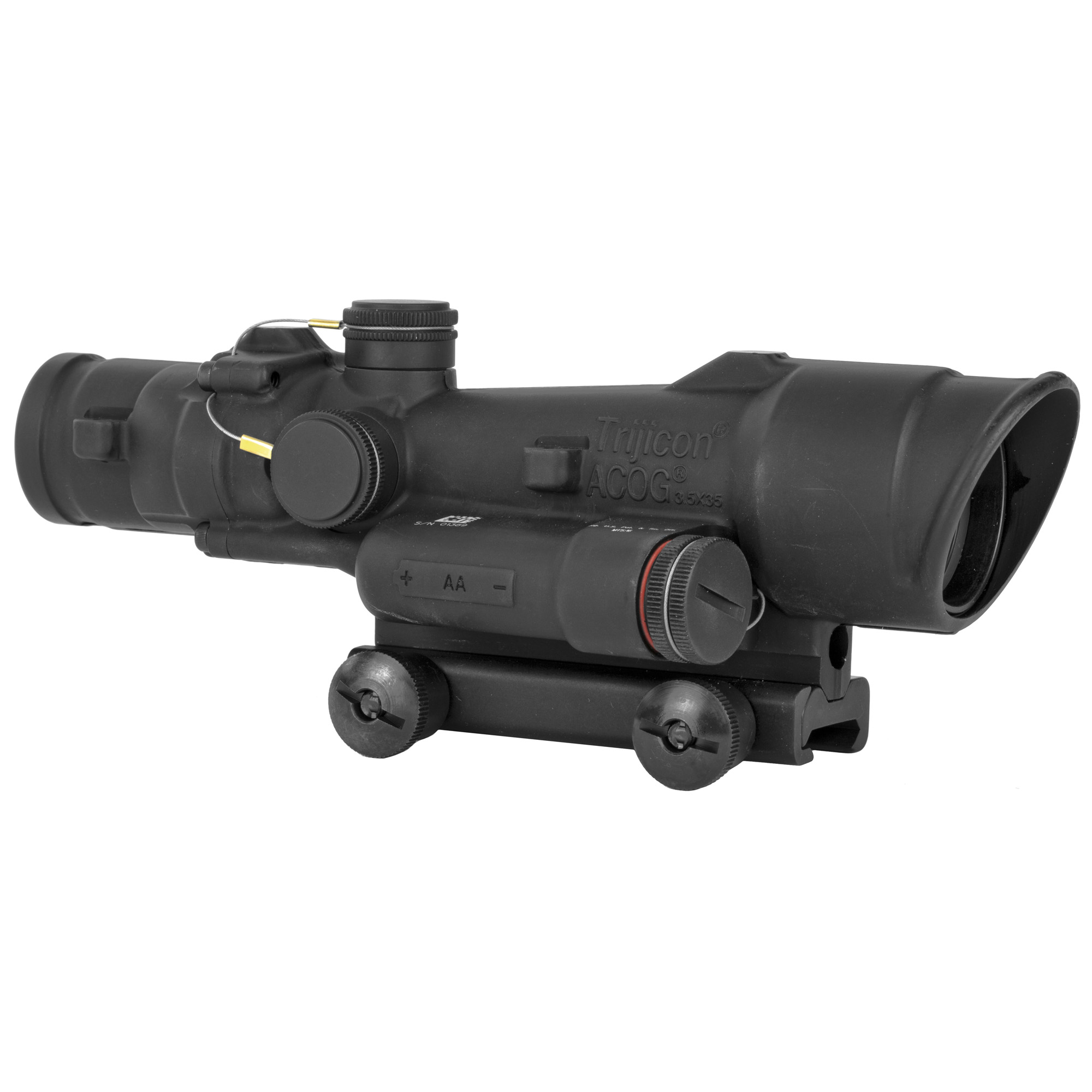

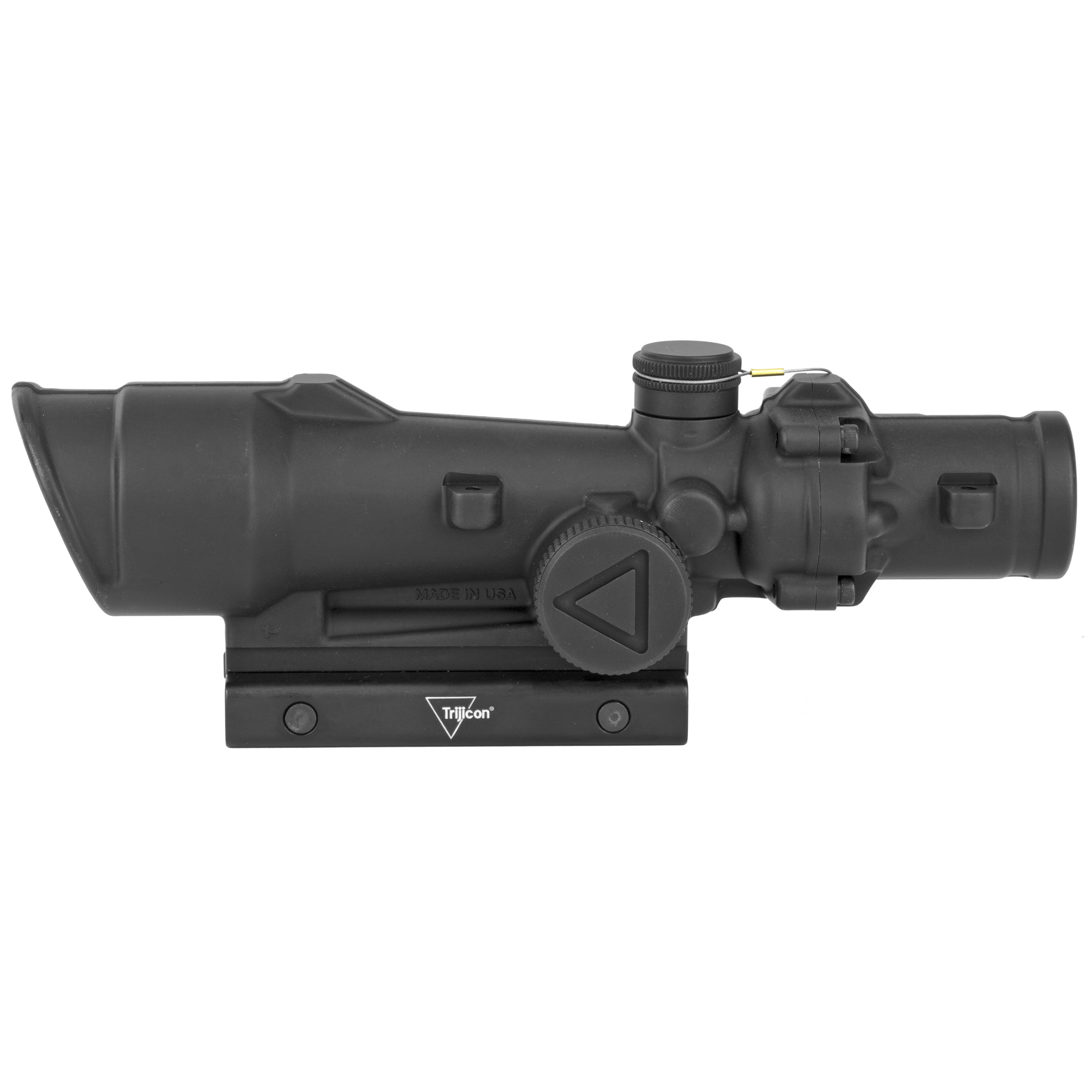

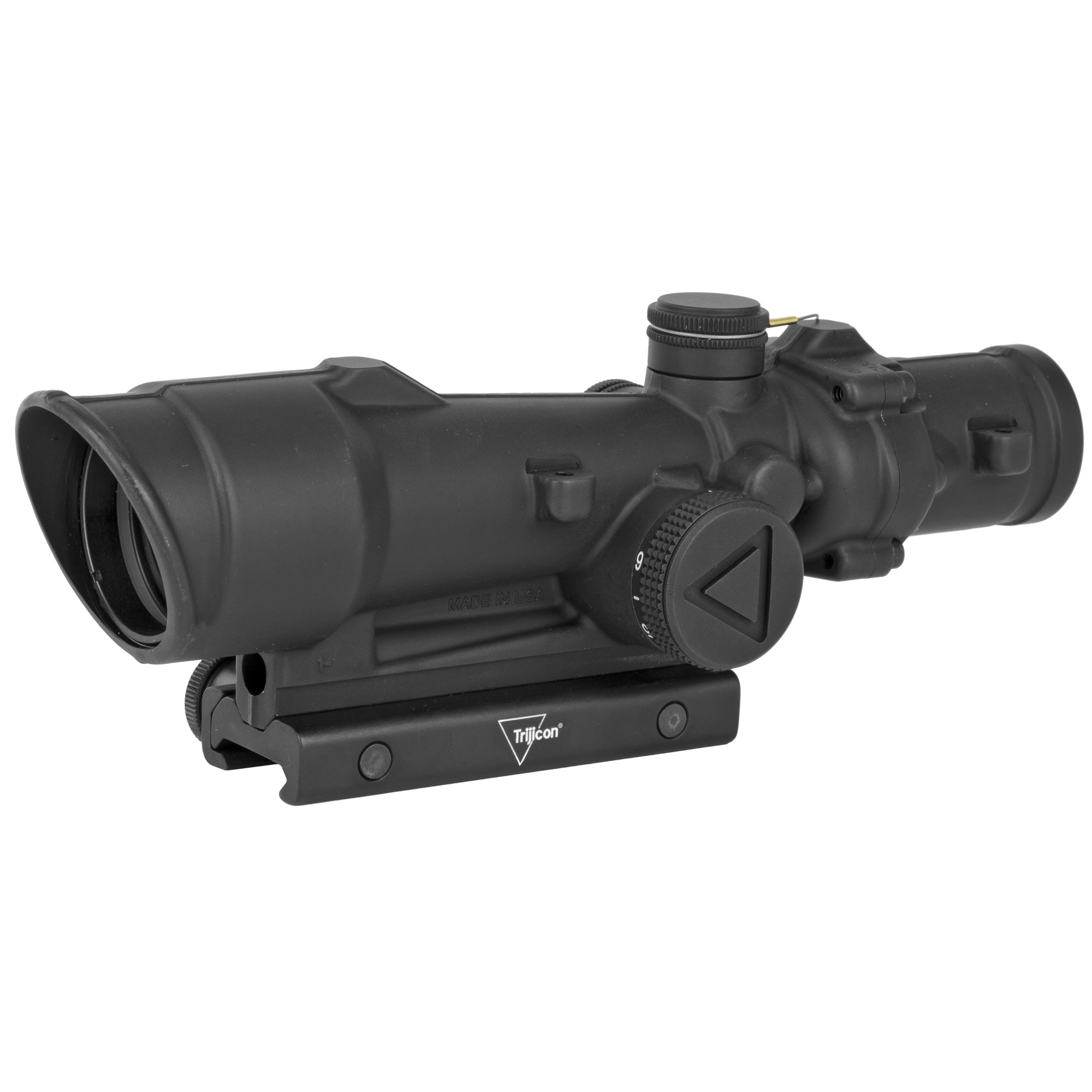

Trijicon ACOG LED Prism Scope 3.5X35 Red Chevron M193 Reticle TA110-C-100491

Trijicon ACOG LED Prism Scope 3.5X35 Red Chevron M193 Reticle TA110-C-100491

From the legendary ACOG® family of products, the LED ACOG is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an “off” between each setting, allowing the operator to determine how much to illuminate the reticle – even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours (on setting #4). Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminum, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 3.5×35 LED ACOG is also compatible with most other 3.5×35 ACOG accessories available.

Length x Width x Height
8 in x 3 in x 2.6 in
(203.2mm x 76.2mm x 66.04mm)
Weight
20.8 oz. (589.67g)
Magnification
3.5x
Objective Size
35mm

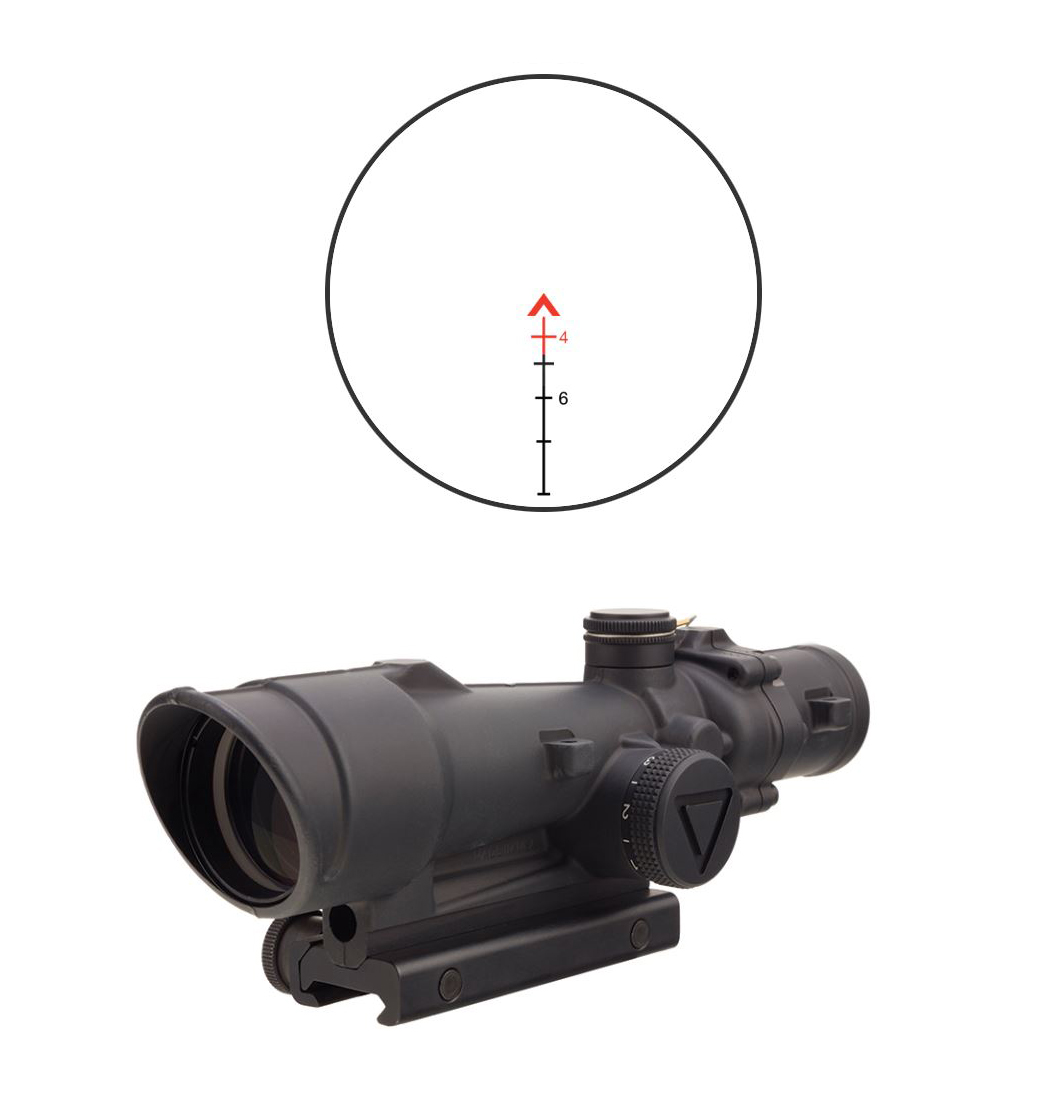

Reticle Pattern
Chevron
Day Reticle Color
Red
Night Reticle Color
Red
Bullet Drop Compensating (BDC)
Yes
Caliber
.223 / 5.56
Bindon Aiming Concept™ (BAC)
Yes
Illumination Source
LED
Illumination Settings
6
Power Source
AA Lithium or Alkaline Battery
Battery Life
Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F)
Adjustment
½ MOA per click
Adjustment Range
40 MOA Total Travel
Eye Relief
2.4 in. (60.96mm)
Exit Pupil
0.39 in. (9.91mm)
Field of View (degrees)
5.5°
Field of View (feet)
28.9 ft. @ 100 yds. (9.63m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
