Trijicon ACOG Scope 3.5X35 Red Chevron Reticle Optic .308 BDC W/ Mount TA11-E

Trijicon ACOG Scope 3.5X35 Red Chevron Reticle Optic .308 BDC W/ Mount TA11-E

Trijicon ACOG 3.5×35 Scope with Red Chevron BAC Reticle TA11E and Trijicon ACOG 3.5×35 Rifle Scope with Green Chevron BAC Reticle TA11E-G include Trijicon Flat Top Adapter TA51. The ranging reticle of the Trijicon Gunsight is calibrated for 7.62mm (.308 cal) flat-top rifles to 800 meters. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19" at 300 meters.

This allows range estimation for silhouette targets. Trijicon TA11E 3.5 x 35mm ACOG Advanced Combat Optical Gunsights to hit fast in any light. Trijicon ACOG 3.5 x 35 Rifle Scopes TA11E/ TA11E G are internally-adjustable, compact telescopic sights with tritium illuminated reticle patterns for use in low light or at night.

Bindon Aiming Concept (BAC) models feature bright daytime reticles using fiber optics which collect ambient light. Trijicon 3.5×35 ACOGs combine traditional, precise distance marksmanship with close-in aiming speed. Although Trijicon ACOG 3.5 x 35 Rifle Scopes TA-11E TA-11EG have many features which are very advantageous for military use, they were developed by Trijicon without government funding. Designed for use with the M16 family, every feature of its mechanical and optical design was chosen for a single purpose: to provide increased hit potential in all lighting conditions – without failure-prone batteries.image

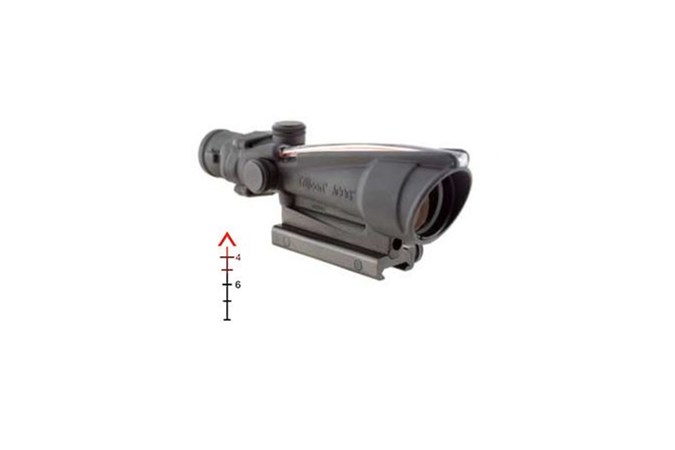

Trijicon ACOG TA11-E 3.5x35mm Rifle Scope reticles:

Trijicon TA11E ACOG 3.5×35 Scope, Dual Illuminated Red Chevron BAC .308 Flattop Reticle w/ TA51 Mount
Trijicon TA11E-G ACOG 3.5×35 Scope, Dual Illuminated Green Chevron BAC .308 Flattop Reticle w/ TA51 Mount
Trijicon TA11E-A Trijicon ACOG 3.5×35 Scope, Dual Illuminated Amber Chevron .308 Ballistic Reticle w/ TA51 Mount

Specifications for Trijicon TA11E ACOG 3.5×35 Scope w/ Chevron BAC .308 Reticle w/ TA51 Flat Top Adapter TA11E/ TA11E-G/TA11E-A Rifle Scopes:
Manufacturer: Trijicon
Objective Lens Diameter: 35 mm
Magnification: 3.5 x
Exit Pupil: 10 mm
Finish: Matte
Field of View, Linear: 28.9 ft at 100 yds
Field of View, Angle: 5.5 degrees
Eye Relief: 2.4 in
Color: Black
Weight: 14 oz
Length: 8 in
Adjustment Type: MOA
Illumination Type: Fiber Optics/Tritium
Fabric/Material: Forged Aluminum
Shockproof: Yes
Fogproof: Yes
Package Type: Polymer hard case
Included Accessories: Standard
Magnification Type: Fixed
Features of Trijicon ACOG 3.5×35 Advanced Combat Optical Gun Sights w/ Chevron BAC .308 Flattop Reticle w/ TA51 Mount:
Military-Grade Aluminum Alloy Housing Forged 7075-T6 aircraft aluminum alloy housing provides for a nearly indestructible sighting system
Binding Aiming Concept (BAC) Trijicon ACOG models equipped with BAC allow use of the both-eyes-open aiming method along with scope magnification sighting for rapid target acquisition – in any light
Longer Eye-Relief Maximum eye-relief for larger caliber rifles and large exit pupil for faster target acquisition
Internally Adjustable Since only the prism housing moves, the ACOG is much more rugged than the conventional designs
Trijicon Fiber Optics Automatically adjusts the brightest level and contrast of the reticle to available light conditions
Trijicon Tritium Phosphor Lamp Aiming reticle glows in low-light conditions for quick target acquisition. Lamp is guaranteed to illuminate up to 15 years.
Totally Battery-Free ACOG delivers increased hit potential in all lighting conditions – without the use of failure-prone batteries
Broad Band Anti-Reflective Coated Lenses Multi-coated lenses provide superior clarity and light gathering capabilities with zero distortion
Lifetime Warranty
Package Contents:
Trijicon TA11E ACOG 3.5×35 Scope w/ Chevron BAC .308 Flattop Reticle
TA51 Mount
